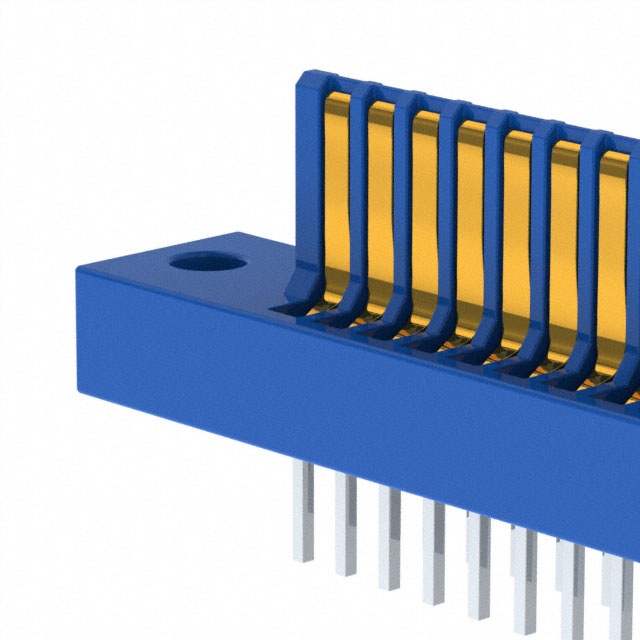

EBC10MMSD
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EBC10MMSD with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EBC10MMSD with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EBC10MMSD |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN CARDEDGE MALE 20POS 0.100 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.32 | $1.267 | $1.162 | $1.109 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.056 | $0.924 | $0.898 | $0.858 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | EBC10MMSD | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN CARDEDGE MALE 20POS 0.100 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 42367 pcs | Data sheet | Male Card Edge CatalogMale, Card Extender Drawing |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | - | Read Out | Dual |
| Pitch | 0.100" (2.54mm) | Packaging | Tray |
| Other Names | EBC10MMSD-ND S9668 |
Operating Temperature | -65°C ~ 125°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | 10 |
| Number of Positions | 20 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Polybutylene Terephthalate (PBT) |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Gender | Male | Flange Feature | Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia |
| Features | - | Contact Type | - |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Color | Blue |
| Card Type | Fits Female Edgecards | Card Thickness | 0.062" (1.57mm) |
