AMC04DAAN

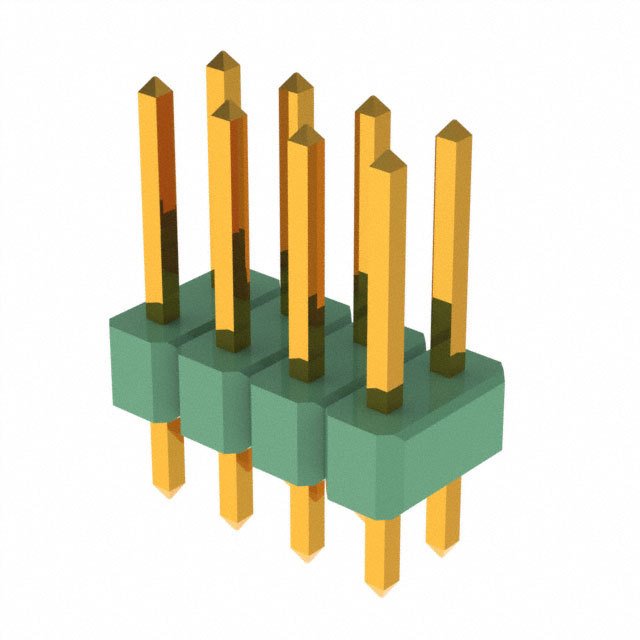

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AMC04DAAN with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AMC04DAAN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AMC04DAAN |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | HI-TEMP CONN HDR .100 DUAL 8POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $4.437 | $3.971 | $3.27 | $2.585 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $2.219 | $2.024 | $1.947 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | AMC04DAAN | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | HI-TEMP CONN HDR .100 DUAL 8POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15972 pcs | Data sheet | xxCxxDxxN Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | - |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.450" (11.43mm) |
| Other Names | S9660-04 | Operating Temperature | -65°C ~ 200°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyphenylene Sulfide (PPS) | Insulation Height | 0.100" (2.54mm) |
| Insulation Color | Green | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 8 position 0.100" (2.54mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Beryllium Copper | Contact Length - Post | 0.120" (3.05mm) |
| Contact Length - Mating | 0.230" (5.84mm) | Contact Finish Thickness - Post | 10.0µin (0.25µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header, Breakaway |
| Applications | - |
