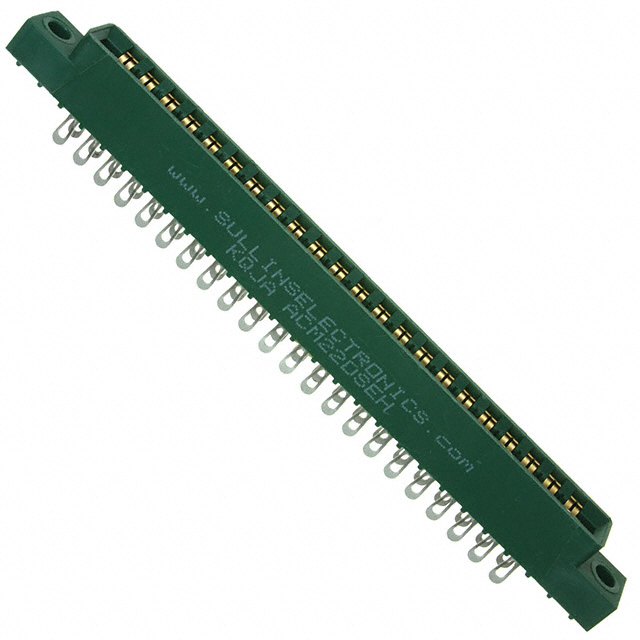

ACM22DSEH
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ACM22DSEH with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ACM22DSEH with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ACM22DSEH |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN EDGE DUAL FMALE 44POS 0.156 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | ||
|---|---|---|---|---|---|
| $5.264 | $4.752 | $4.623 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | ACM22DSEH | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN EDGE DUAL FMALE 44POS 0.156 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7791 pcs | Data sheet | Edgecards .156 in Data Sheet |
| Category | Connectors, Interconnects | Termination | Solder Eyelet(s) |
| Series | - | Read Out | Dual |
| Pitch | 0.156" (3.96mm) | Packaging | Tray |
| Other Names | S7211 | Operating Temperature | -65°C ~ 150°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | 22 |
| Number of Positions | 44 | Mounting Type | Panel Mount |
| Material - Insulation | Polyphenylene Sulfide (PPS) | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Gender | Female |
| Flange Feature | Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia | Features | - |
| Contact Type | Full Bellows | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Color | Green | Card Type | Non Specified - Dual Edge |
| Card Thickness | 0.062" (1.57mm) |
