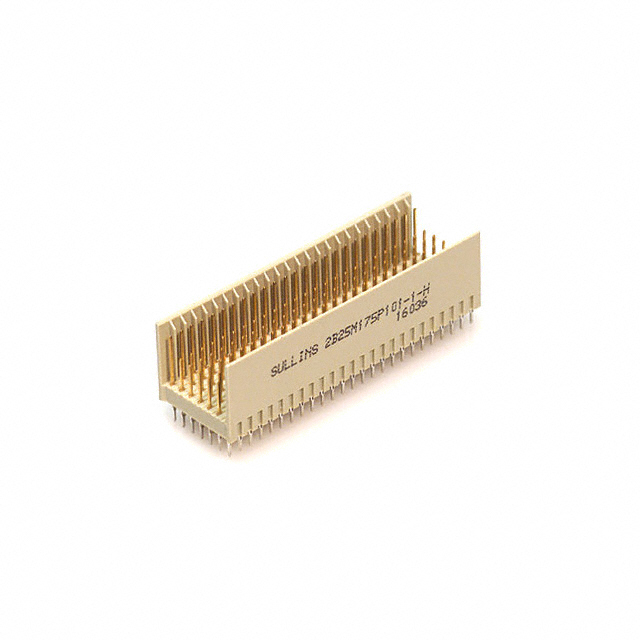

2B25M175P1001-1-H
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2B25M175P1001-1-H with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2B25M175P1001-1-H with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2B25M175P1001-1-H |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN HEADER HM B25 SHIELD 175POS |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2B25M175P1001-1-H | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HEADER HM B25 SHIELD 175POS | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5157 pcs | Data sheet | 2B25M175P1001-1-H Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Press-Fit | Series | - |
| Pitch | 0.079" (2.00mm) | Packaging | Tube |
| Other Names | 2B25M175P10011H S3114 |
Operating Temperature | -65°C ~ 125°C |
| Number of Rows | 5 + 2 | Number of Positions Loaded | All |
| Number of Positions | 175 (125 + 50 Ground) | Mounting Type | Through Hole |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Features | Upper Shield |
| Detailed Description | 175 (125 + 50 Ground) Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole | Current Rating | 1A |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Usage | CompactPCI | Connector Type | Header, Male Pins |
| Connector Style | B 25 |
