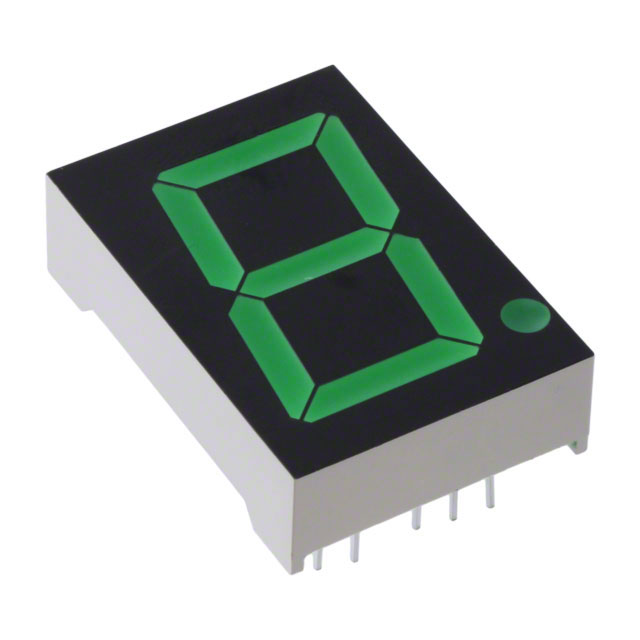

NAG105PB
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NAG105PB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NAG105PB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NAG105PB |
|---|---|
| Manufacturer | Stanley Electric |
| Description | LED 7SEG DISP 1.0" GREEN CA BLK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | NAG105PB | Manufacturer | Stanley Electric |
|---|---|---|---|
| Description | LED 7SEG DISP 1.0" GREEN CA BLK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5595 pcs | Data sheet | 105, 107 Series |
| Category | Optoelectronics | Wavelength - Peak | 565nm |
| Voltage - Forward (Vf) (Typ) | 4.4V | Size / Dimension | 1.299" H x 0.898" W x 0.354" D (33.00mm x 22.80mm x 9.00mm) |
| Series | - | Power Dissipation (Max) | 126mW |
| Packaging | Tray | Package / Case | 14-DIP |
| Other Names | 404-1128 | Number of Characters | 1 |
| Millicandela Rating | 8mcd | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Display Type | 7-Segment | Digit/Alpha Size | 1.00" (25.40mm) |
| Detailed Description | Character LED Display Module Green 7-Segment 1 Character Common Anode 4.4V 20mA 1.299" H x 0.898" W x 0.354" D (33.00mm x 22.80mm x 9.00mm) 14-DIP | Current - Test | 20mA |
| Common Pin | Common Anode | Color | Green |
