Home > Products > Optoelectronics > LED Indication - Discrete > DG3804X

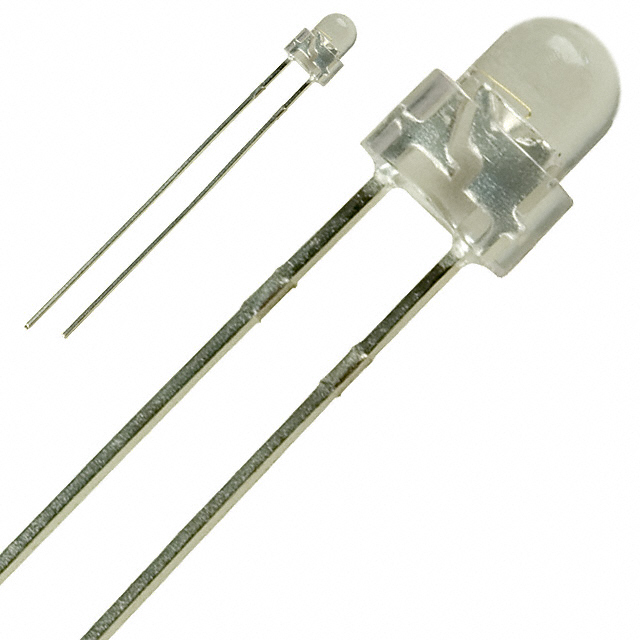

DG3804X

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DG3804X with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	DG3804X
Manufacturer	Stanley Electric
Description	LED GREEN CLEAR 3MM ROUND T/H
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5298 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	DG3804X	Manufacturer	Stanley Electric
Description	LED GREEN CLEAR 3MM ROUND T/H	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5298 pcs	Data sheet	D_3804X, F_3864X Series
Category	Optoelectronics	Wavelength - Peak	522nm
Wavelength - Dominant	525nm	Voltage - Forward (Vf) (Typ)	3.5V
Viewing Angle	50°	Supplier Device Package	3mm Round
Size / Dimension	-	Series	-
Packaging	Bulk	Package / Case	Radial
Other Names	404-1115	Mounting Type	Through Hole
Millicandela Rating	480mcd	Lens Transparency	Clear
Lens Style/Size	Round with Domed Top, 3mm (T-1), 3.10mm	Lens Color	Colorless
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height (Max)	5.40mm
Features	-	Detailed Description	Green 525nm LED Indication - Discrete 3.5V Radial
Current - Test	20mA	Configuration	Standard
Color	Green
