Home > Products > Switches > Magnetic, Reed Switches > MK22-B-2

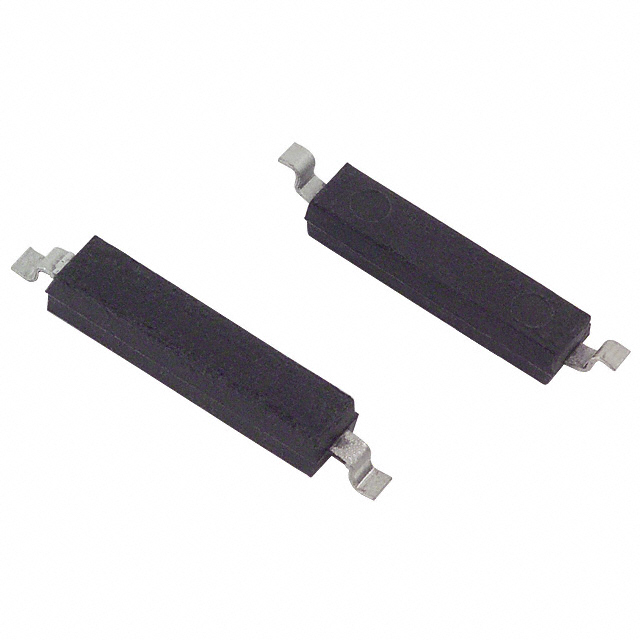

MK22-B-2

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MK22-B-2 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MK22-B-2
Manufacturer	Standex-Meder Electronics
Description	SWITCH REED SPST-NO 1A 200V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5952 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	MK22-B-2	Manufacturer	Standex-Meder Electronics
Description	SWITCH REED SPST-NO 1A 200V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5952 pcs	Data sheet	MK22 Series Datasheet MK22-B-2 Spec Sheet
Category	Switches	Voltage - Switching DC	200V
Voltage - Switching AC	200V	Type	Molded Body
Termination Style	Gull Wing	Size - Body	0.457" L x 0.116" W x 0.091" H (11.60mm x 2.95mm x 2.30mm)
Series	MK22	Release Time	0.1ms
Release Range	-	Power - Rated	20W
Packaging	Tape & Reel (TR)	Other Names	374-1043-2 9221350022 MK22B2
Operating Temperature	-40°C ~ 130°C	Operate Time	0.5ms
Operate Range	10 ~ 15AT	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Length - Overall	0.614" (15.60mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.094" (2.40mm)
Detailed Description	Molded Body Reed Switch SPST-NO 10 ~ 15AT Operate Range 20W 1A (AC/DC) 200V Surface Mount	Current - Switching	1A (AC/DC)
Current - Carry	1.25A (AC/DC)	Circuit	SPST-NO
Capacitance	0.3pF
