Home > Products > Switches > Magnetic, Reed Switches > GP560152001

GP560152001

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy GP560152001 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	GP560152001
Manufacturer	Standex-Meder Electronics
Description	SWITCH REED SPST-NO 1A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5101 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter

Product parameter

Part Number	GP560152001	Manufacturer	Standex-Meder Electronics
Description	SWITCH REED SPST-NO 1A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5101 pcs	Data sheet
Category	Switches	Voltage - Switching DC	100V
Voltage - Switching AC	125V	Type	Glass Body
Termination Style	Axial	Size - Body	0.091" Dia x 0.559" L (2.30mm x 14.20mm)
Series	GP560	Release Time	0.1ms
Release Range	6 ~ 21AT	Power - Rated	10VA
Packaging	Bulk	Other Names	374-1336 4500521520
Operating Temperature	-40°C ~ 125°C	Operate Time	0.6ms
Operate Range	10 ~ 50AT	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Length - Overall	2.126" (54.00mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	-
Detailed Description	Glass Body Reed Switch SPST-NO 10 ~ 50AT Operate Range 10VA 1A (AC/DC) 125V Through Hole	Current - Switching	1A (AC/DC)
Current - Carry	1.5A (AC/DC)	Circuit	SPST-NO
Capacitance	0.2pF

Related products
Related news

Related products

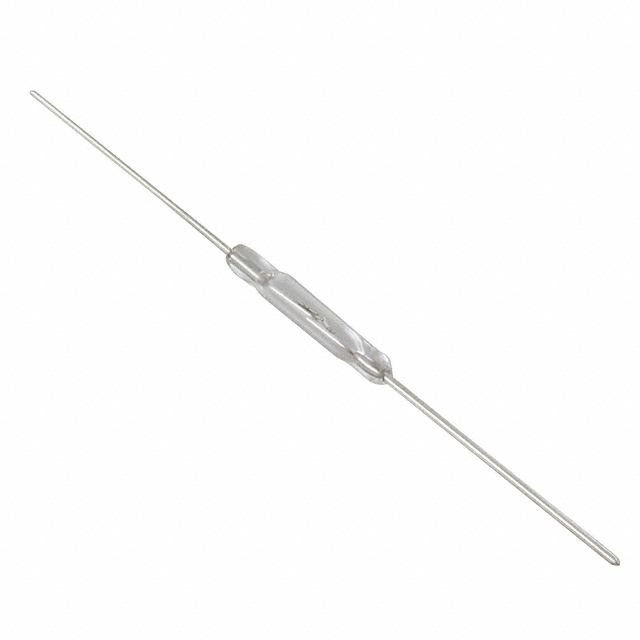

GP560101501 Image
