Home > Products > Resistors > Chassis Mount Resistors > NKAL25FB20R0

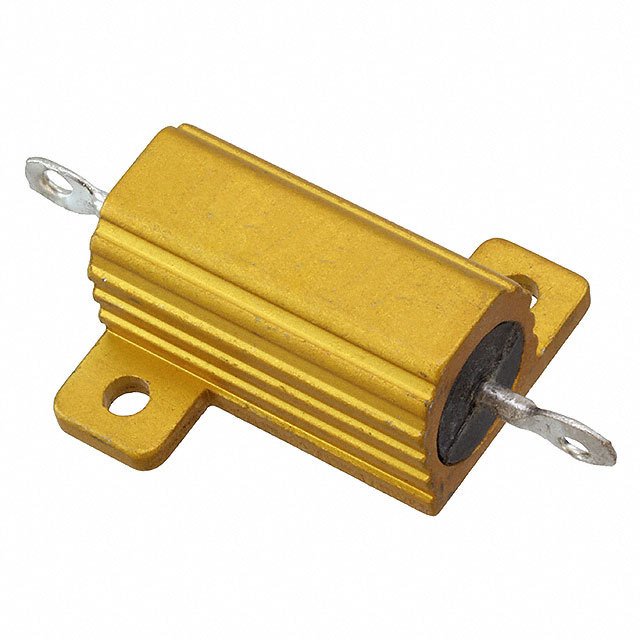

NKAL25FB20R0

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NKAL25FB20R0 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NKAL25FB20R0
Manufacturer	Stackpole Electronics, Inc.
Description	RES CHAS MNT 20 OHM 1% 25W
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 30446 pcs
Reference Price (In US Dollars)	250 pcs
Reference Price (In US Dollars)	$1.208

Product parameter
Data sheet

Product parameter

Part Number	NKAL25FB20R0	Manufacturer	Stackpole Electronics, Inc.
Description	RES CHAS MNT 20 OHM 1% 25W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	30446 pcs	Data sheet	Resistor Packaging Spec KAL Series
Category	Resistors	Tolerance	±1%
Temperature Coefficient	±30ppm/°C	Size / Dimension	1.063" L x 1.079" W (27.00mm x 27.40mm)
Series	KAL	Resistance	20 Ohms
Power (Watts)	25W	Packaging	Bulk
Package / Case	Axial, Box	Other Names	NKAL 25 20 1% B NKAL25201%B NKAL25201%B-ND NKAL2520FB NKAL2520FB-ND
Operating Temperature	-55°C ~ 275°C	Mounting Feature	Flanges
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	14 Weeks
Lead Style	Solder Lugs	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	0.577" (14.66mm)	Features	Moisture Resistant, Non-Inductive
Failure Rate	-	Detailed Description	20 Ohms ±1% 25W Wirewound Chassis Mount Resistor
Composition	Wirewound	Coating, Housing Type	Aluminum
