SGNMA3T20009

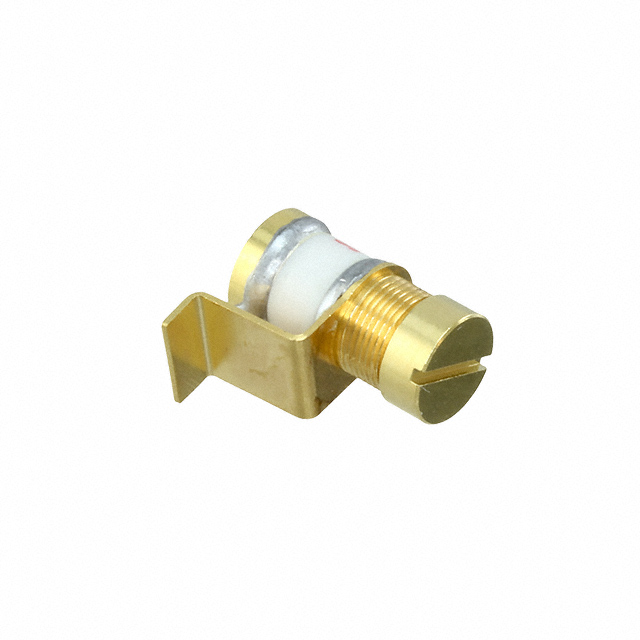

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SGNMA3T20009 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SGNMA3T20009 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SGNMA3T20009 |
|---|---|
| Manufacturer | Sprague Goodman |
| Description | CAP TRIMMER 2-20PF 1000V SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $16.129 | $15.234 | $12.322 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SGNMA3T20009 | Manufacturer | Sprague Goodman |
|---|---|---|---|
| Description | CAP TRIMMER 2-20PF 1000V SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3012 pcs | Data sheet | SGNMA3T20009 Drawing |
| Category | Capacitors | Voltage - Rated | 1000V |
| Size / Dimension | 0.280" Dia (7.11mm) | Series | SGNMA3T |
| Q @ Freq | 2000 @ 100MHz | Packaging | Bulk |
| Other Names | SG9070 | Operating Temperature | -65°C ~ 125°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.490" (12.45mm) | Features | Non-Magnetic |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | 2 ~ 20pF Trimmer Capacitor 1000V Top Surface Mount |
| Capacitance Range | 2 ~ 20pF | Adjustment Type | Top |
