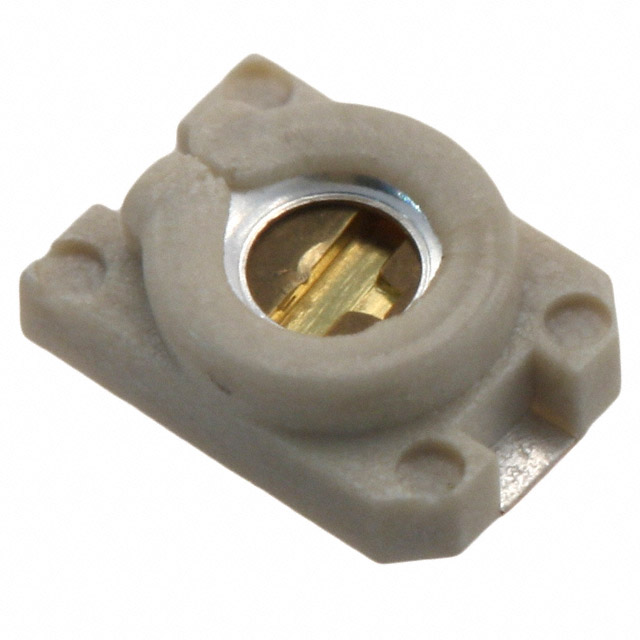

SGC3S100NM
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SGC3S100NM with confidence from Components-World.HK, 1 Year Warranty
Dowload SGC3S100NM Details in PDFSee Product Specifications for product details.
Buy SGC3S100NM with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SGC3S100NM |
|---|---|
| Manufacturer | Sprague Goodman |
| Description | CAP TRIMMER 3-10PF 500V SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 5000 pcs | ||
|---|---|---|---|---|---|
| $0.421 | $0.406 | $0.391 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SGC3S100NM | Manufacturer | Sprague Goodman |
|---|---|---|---|
| Description | CAP TRIMMER 3-10PF 500V SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 99495 pcs | Data sheet | SGC3SyyyNM Series Fact SheetSGC3S Series Drawing |
| Category | Capacitors | Voltage - Rated | 500V |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) | Series | SGC3 |
| Q @ Freq | 700 @ 25MHz | Packaging | Tape & Reel (TR) |
| Other Names | SG9039TR | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.059" (1.50mm) | Features | Low Profile, Non-Magnetic |
| Dielectric Material | Ceramic | Detailed Description | 3 ~ 10pF Trimmer Capacitor 500V Top Surface Mount |
| Capacitance Range | 3 ~ 10pF | Adjustment Type | Top |
