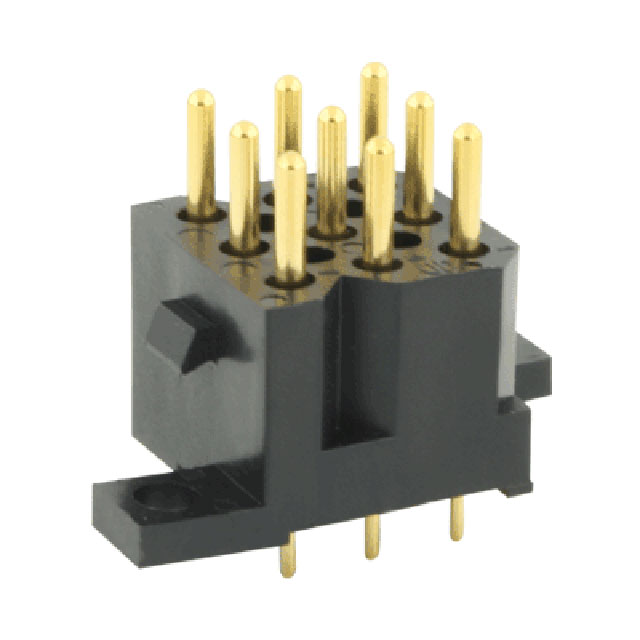

SMS9RE4S6
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMS9RE4S6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SMS9RE4S6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SMS9RE4S6 |
|---|---|
| Manufacturer | Souriau Connection Technology |
| Description | SMS VERTICAL BOARD MT. |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 200 pcs | ||||
|---|---|---|---|---|---|
| $1.48 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SMS9RE4S6 | Manufacturer | Souriau Connection Technology |
|---|---|---|---|
| Description | SMS VERTICAL BOARD MT. | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24123 pcs | Data sheet | SM(x)yyR(E) DrawingSMS Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Unshrouded | Series | SMS |
| Row Spacing - Mating | 0.200" (5.08mm) | Pitch - Mating | 0.200" (5.08mm) |
| Packaging | Bulk | Overall Contact Length | 0.972" (24.70mm) |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 3 |
| Number of Positions Loaded | All | Number of Positions | 9 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.520" (13.20mm) | Insulation Color | Black |
| Ingress Protection | IP40 | Features | Mounting Flange |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 9 position 0.200" (5.08mm) |
| Current Rating | 5A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.173" (4.40mm) | Contact Length - Mating | 0.280" (7.11mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 16.0µin (0.41µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
