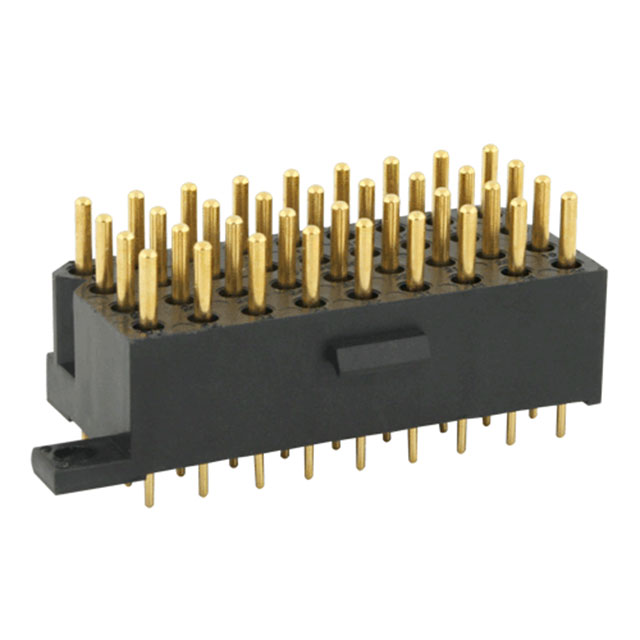

SMS36RE-4TR29
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMS36RE-4TR29 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SMS36RE-4TR29 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SMS36RE-4TR29 |
|---|---|
| Manufacturer | Souriau Connection Technology |
| Description | QIKMATE BD MNT PIN 36 POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $3.081 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SMS36RE-4TR29 | Manufacturer | Souriau Connection Technology |
|---|---|---|---|
| Description | QIKMATE BD MNT PIN 36 POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11528 pcs | Data sheet | SM(x)yyR(E) DrawingSMS Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Unshrouded | Series | SMS |
| Row Spacing - Mating | 0.200" (5.08mm) | Pitch - Mating | 0.200" (5.08mm) |
| Packaging | Bulk | Overall Contact Length | 0.972" (24.70mm) |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 9 |
| Number of Positions Loaded | All | Number of Positions | 36 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyester, Glass Filled | Insulation Height | 0.520" (13.20mm) |
| Insulation Color | Black | Ingress Protection | IP40 |
| Features | Mounting Flange | Fastening Type | Locking Ramp |
| Detailed Description | Connector Header Through Hole 36 position 0.200" (5.08mm) | Current Rating | 5A |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Copper Alloy | Contact Length - Post | 0.173" (4.40mm) |
| Contact Length - Mating | 0.280" (7.11mm) | Contact Finish Thickness - Post | 118.1µin (3.00µm) |
| Contact Finish Thickness - Mating | 118.1µin (3.00µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
