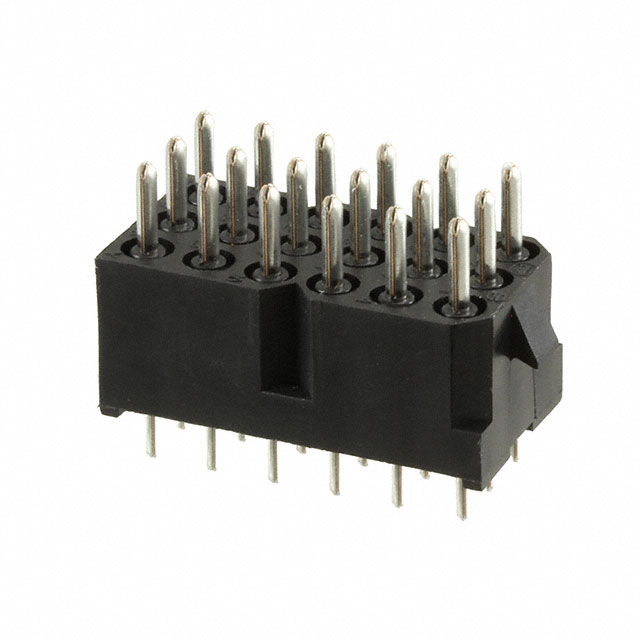

SMS18R-4TR29
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMS18R-4TR29 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SMS18R-4TR29 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SMS18R-4TR29 |
|---|---|
| Manufacturer | Souriau Connection Technology |
| Description | QIKMATE BD MOUNT PIN ASSY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $4.386 | $3.987 | $3.389 | $2.891 | $2.652 | |
- Product parameter
Product parameter
| Part Number | SMS18R-4TR29 | Manufacturer | Souriau Connection Technology |
|---|---|---|---|
| Description | QIKMATE BD MOUNT PIN ASSY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13813 pcs | Data sheet | |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Unshrouded | Series | SMS |
| Row Spacing - Mating | 0.200" (5.08mm) | Pitch - Mating | 0.200" (5.08mm) |
| Packaging | - | Overall Contact Length | 0.972" (24.70mm) |
| Other Names | SMS18R-4TR29-ND SOU2181 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 6 | Number of Positions Loaded | All |
| Number of Positions | 18 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.520" (13.20mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 18 position 0.200" (5.08mm) |
| Current Rating | 5A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.173" (4.40mm) | Contact Length - Mating | 0.280" (7.11mm) |
| Contact Finish Thickness - Post | 118.1µin (3.00µm) | Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
