JMXHH1G12MSUDSU

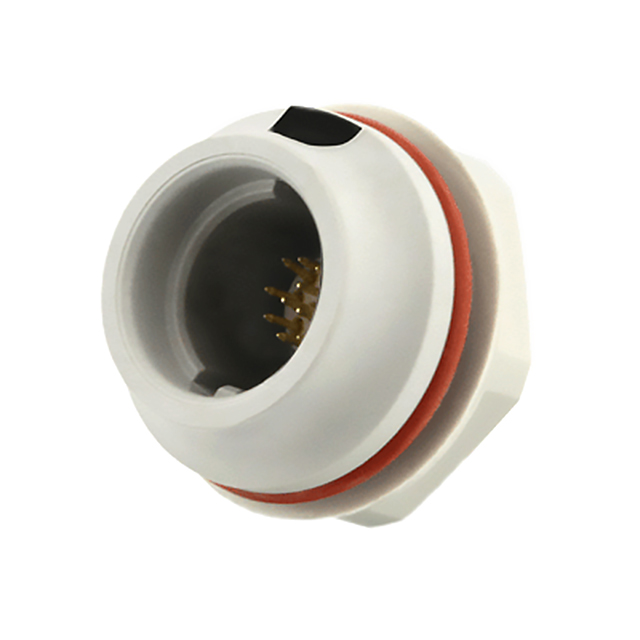

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JMXHH1G12MSUDSU with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JMXHH1G12MSUDSU with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JMXHH1G12MSUDSU |
|---|---|
| Manufacturer | Souriau Connection Technology |
| Description | CONN RCPT MALE 12POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 25 pcs | ||||
|---|---|---|---|---|---|
| $7.268 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JMXHH1G12MSUDSU | Manufacturer | Souriau Connection Technology |
|---|---|---|---|
| Description | CONN RCPT MALE 12POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4095 pcs | Data sheet | JMXHH1GxxMSxDSx Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 100V |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | 1-12 |
| Shell Material | Polyetherimide (PEI) | Shell Finish | - |
| Series | JMX | Packaging | Bulk |
| Orientation | G | Operating Temperature | -20°C ~ 100°C |
| Number of Positions | 12 | Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyetheretherketone (PEEK) | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 12 Position Circular Connector Receptacle, Male Pins Solder Cup Gold | Current Rating | 2.5A |
| Contact Material | Copper Nickel | Contact Finish Thickness - Mating | 19.7µin (0.50µm) |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Male Pins |
| Color | Light Gray | Cable Opening | - |
| Backshell Material, Plating | - | Applications | Industrial, Instrumentation, Medical |
