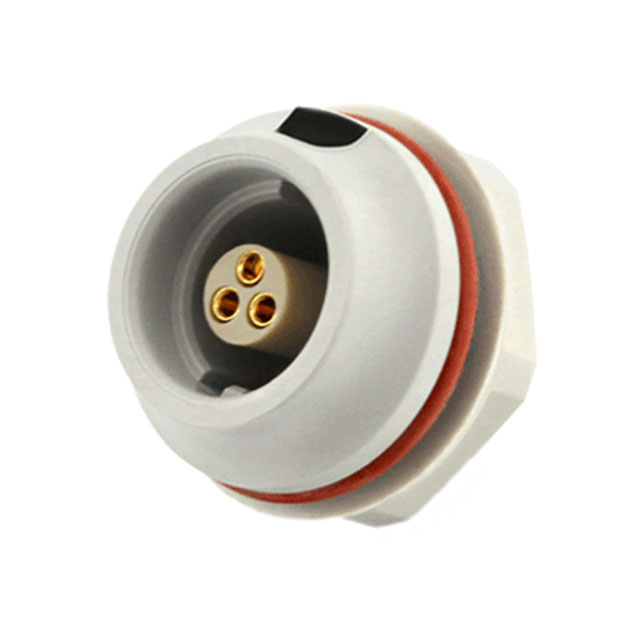

JMXHH1G03FSUDSU
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JMXHH1G03FSUDSU with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JMXHH1G03FSUDSU with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JMXHH1G03FSUDSU |
|---|---|
| Manufacturer | Souriau Connection Technology |
| Description | CONN RCPT FMALE 3POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $7.71 | $6.96 | $6.669 | $6.252 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $6.044 | $5.71 | $5.543 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | JMXHH1G03FSUDSU | Manufacturer | Souriau Connection Technology |
|---|---|---|---|
| Description | CONN RCPT FMALE 3POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6709 pcs | Data sheet | JMX Series CatalogJMXHH1GxxFSxDSx DrawingJMX Series Assembly Instr. |
| Category | Connectors, Interconnects | Voltage Rating | 230V |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | 1-3 |
| Shell Material | Polyetherimide (PEI) | Shell Finish | - |
| Series | JMX | Packaging | Bulk |
| Other Names | SOU2255 | Orientation | G |
| Operating Temperature | -20°C ~ 100°C | Number of Positions | 3 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Rear Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Polyetheretherketone (PEEK) |
| Ingress Protection | IP68 - Dust Tight, Waterproof | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 3 Position Circular Connector Receptacle, Female Sockets Solder Cup Gold |
| Current Rating | 9A | Contact Material | Copper Nickel |
| Contact Finish Thickness - Mating | 19.7µin (0.50µm) | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Female Sockets | Color | Light Gray |
| Cable Opening | - | Backshell Material, Plating | - |
| Applications | Industrial, Instrumentation, Medical |
