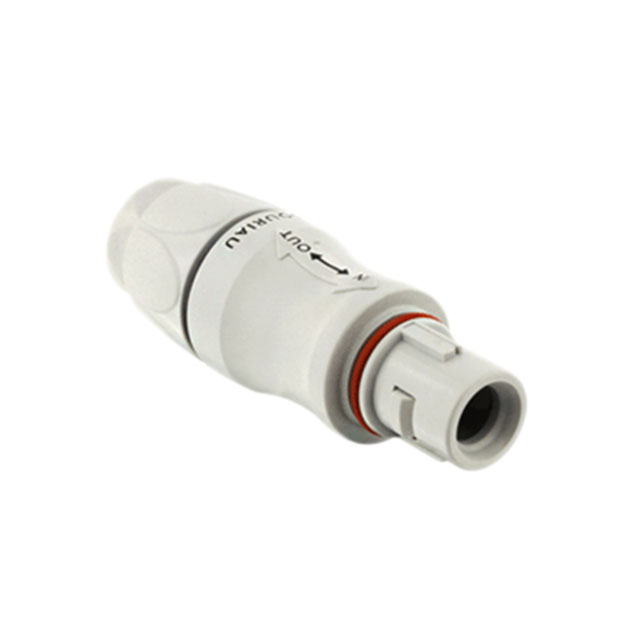

JMXFH1G12MSUDSU
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JMXFH1G12MSUDSU with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JMXFH1G12MSUDSU with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JMXFH1G12MSUDSU |
|---|---|
| Manufacturer | Souriau Connection Technology |
| Description | CONN PLUG MALE 12POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $10.516 | $9.492 | $9.095 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $8.526 | $8.242 | $7.787 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | JMXFH1G12MSUDSU | Manufacturer | Souriau Connection Technology |
|---|---|---|---|
| Description | CONN PLUG MALE 12POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4943 pcs | Data sheet | JMX Series CatalogJMXFH1GxxMSxDSx DrawingJMX Series Assembly Instr. |
| Category | Connectors, Interconnects | Voltage Rating | 100V |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | 1-12 |
| Shell Material | Polyetherimide (PEI) | Shell Finish | - |
| Series | JMX | Packaging | Bulk |
| Other Names | SOU2246 | Orientation | G |
| Operating Temperature | -40°C ~ 125°C | Number of Positions | 12 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Polyetheretherketone (PEEK) |
| Ingress Protection | IP50/68 - Dust Protected, Dust Tight, Waterproof | Features | Backshell |
| Fastening Type | Push-Pull | Detailed Description | 12 Position Circular Connector Plug, Male Pins Solder Cup Gold |
| Current Rating | 2.5A | Contact Material | Copper Nickel |
| Contact Finish Thickness - Mating | 19.7µin (0.50µm) | Contact Finish - Mating | Gold |
| Connector Type | Plug, Male Pins | Color | Light Gray |
| Cable Opening | - | Backshell Material, Plating | Polyetherimide (PEI) |
| Applications | Industrial, Instrumentation, Medical |
