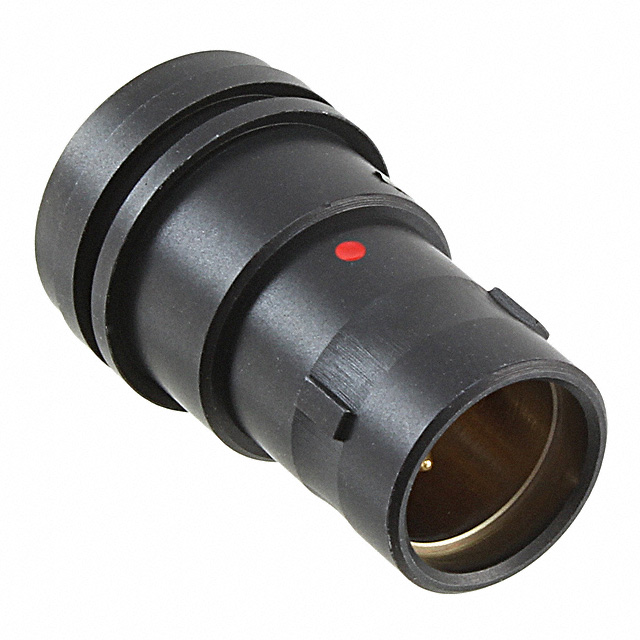

JDXFD2T001MSN
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JDXFD2T001MSN with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JDXFD2T001MSN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JDXFD2T001MSN |
|---|---|
| Manufacturer | Souriau Connection Technology |
| Description | CONN PLUG MALE 8POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 25 pcs | ||||
|---|---|---|---|---|---|
| $15.63 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JDXFD2T001MSN | Manufacturer | Souriau Connection Technology |
|---|---|---|---|
| Description | CONN PLUG MALE 8POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1930 pcs | Data sheet | JDX Hybrid |
| Category | Connectors, Interconnects | Voltage Rating | 700VDC |
| Termination | Solder Cup | Shielding | Shielded |
| Shell Size, MIL | - | Shell Size - Insert | 2-001 |
| Shell Material | Brass | Shell Finish | Black Chrome over Nickel |
| Series | JDX Hybrid | Packaging | Bulk |
| Other Names | SOU1859 | Orientation | T |
| Operating Temperature | -40°C ~ 125°C | Number of Positions | 8 (6 + 2 Power) |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 17 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyetheretherketone (PEEK) | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 8 (6 + 2 Power) Position Circular Connector Plug, Male Pins Solder Cup Gold | Current Rating | 7A, 30A |
| Contact Material | Brass | Contact Finish Thickness - Mating | 19.7µin (0.50µm) |
| Contact Finish - Mating | Gold | Connector Type | Plug, Male Pins |
| Color | Black | Cable Opening | - |
| Backshell Material, Plating | - | Applications | Industrial, Instrumentation, Medical, Military |
