JBXFD3G03MCSDSR

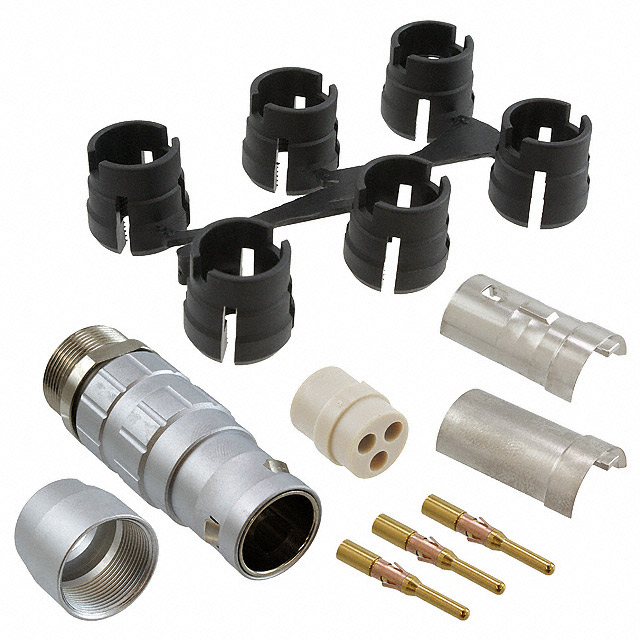

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JBXFD3G03MCSDSR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JBXFD3G03MCSDSR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JBXFD3G03MCSDSR |
|---|---|
| Manufacturer | Souriau Connection Technology |
| Description | CONN PLUG MALE 3POS GOLD CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $27.493 | $25.877 | $25.068 | $23.451 | $22.157 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | JBXFD3G03MCSDSR | Manufacturer | Souriau Connection Technology |
|---|---|---|---|
| Description | CONN PLUG MALE 3POS GOLD CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1417 pcs | Data sheet | JBX Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | 1600V |
| Termination | Crimp | Shielding | Shielded |
| Shell Size, MIL | - | Shell Size - Insert | 3 |
| Shell Material | Brass | Shell Finish | Chrome over Nickel |
| Series | JBX | Packaging | Bulk |
| Other Names | SOU1712 | Orientation | G |
| Operating Temperature | -40°C ~ 125°C | Number of Positions | 3 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 17 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyetheretherketone (PEEK) | Ingress Protection | IP40 |
| Features | Backshell | Fastening Type | Push-Pull |
| Detailed Description | 3 Position Circular Connector Plug, Male Pins Crimp Gold | Current Rating | 25A |
| Contact Material | - | Contact Finish Thickness - Mating | 19.7µin (0.50µm) |
| Contact Finish - Mating | Gold | Connector Type | Plug, Male Pins |
| Color | Silver | Cable Opening | - |
| Backshell Material, Plating | Brass, Chrome over Nickel | Applications | Industrial, Instrumentation, Medical, Telecommunications |
