JBXFC1G05MSSDSMR

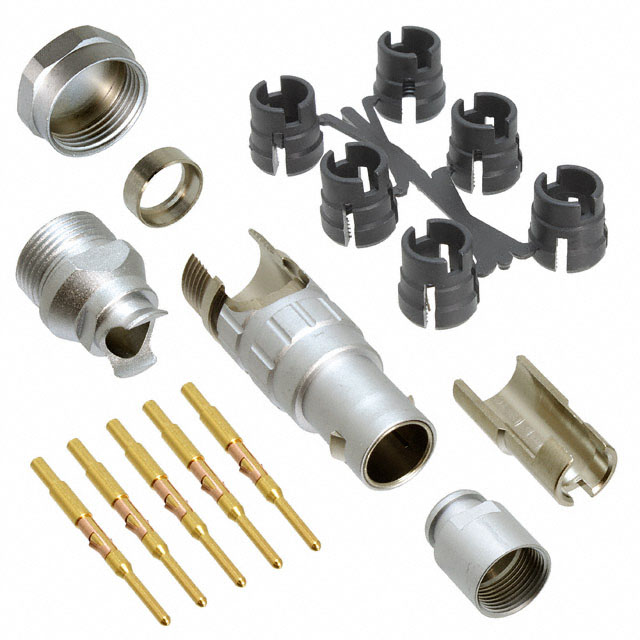

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JBXFC1G05MSSDSMR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JBXFC1G05MSSDSMR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JBXFC1G05MSSDSMR |
|---|---|
| Manufacturer | Souriau Connection Technology |
| Description | CONN PLUG MALE 5POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 25 pcs | ||||
|---|---|---|---|---|---|
| $18.169 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JBXFC1G05MSSDSMR | Manufacturer | Souriau Connection Technology |
|---|---|---|---|
| Description | CONN PLUG MALE 5POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1915 pcs | Data sheet | JBX Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | 660V |
| Termination | Solder Cup | Shielding | Shielded |
| Shell Size, MIL | - | Shell Size - Insert | 1 |
| Shell Material | Brass | Shell Finish | Chrome over Nickel |
| Series | JBX | Packaging | Bulk |
| Other Names | SOU1815 | Orientation | G |
| Operating Temperature | -40°C ~ 125°C | Number of Positions | 5 |
| Mounting Type | Free Hanging (In-Line), Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Polyetheretherketone (PEEK) |
| Ingress Protection | IP40 | Features | Backshell, Boot Adapter |
| Fastening Type | Push-Pull | Detailed Description | 5 Position Circular Connector Plug, Male Pins Solder Cup Gold |
| Current Rating | 9A | Contact Material | - |
| Contact Finish Thickness - Mating | 19.7µin (0.50µm) | Contact Finish - Mating | Gold |
| Connector Type | Plug, Male Pins | Color | Silver |
| Cable Opening | - | Backshell Material, Plating | Brass, Chrome over Nickel |
| Applications | Industrial, Instrumentation, Medical, Telecommunications |
