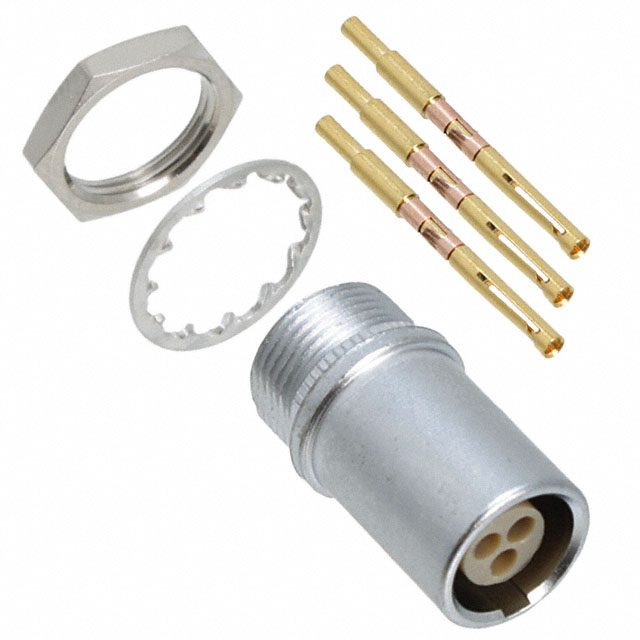

JBXED0G03FSSDSR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JBXED0G03FSSDSR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JBXED0G03FSSDSR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JBXED0G03FSSDSR |
|---|---|
| Manufacturer | Souriau Connection Technology |
| Description | CONN RCPT FMALE 3POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 25 pcs | ||||
|---|---|---|---|---|---|
| $6.632 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JBXED0G03FSSDSR | Manufacturer | Souriau Connection Technology |
|---|---|---|---|
| Description | CONN RCPT FMALE 3POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4843 pcs | Data sheet | JBXED0GxxFSxDSC DrawingJBX Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | 600V |
| Termination | Solder Cup | Shielding | Shielded |
| Shell Size, MIL | - | Shell Size - Insert | 0 |
| Shell Material | Brass | Shell Finish | Chrome over Nickel |
| Series | JBX | Packaging | Bulk |
| Other Names | SOU1586 | Orientation | G |
| Operating Temperature | -40°C ~ 125°C | Number of Positions | 3 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Rear Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 17 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyetheretherketone (PEEK) | Ingress Protection | IP40 |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 3 Position Circular Connector Receptacle, Female Sockets Solder Cup Gold | Current Rating | 8A |
| Contact Material | - | Contact Finish Thickness - Mating | 19.7µin (0.50µm) |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Female Sockets |
| Color | Silver | Cable Opening | - |
| Backshell Material, Plating | - | Applications | Industrial, Instrumentation, Medical, Telecommunications |
