S2S5A00F

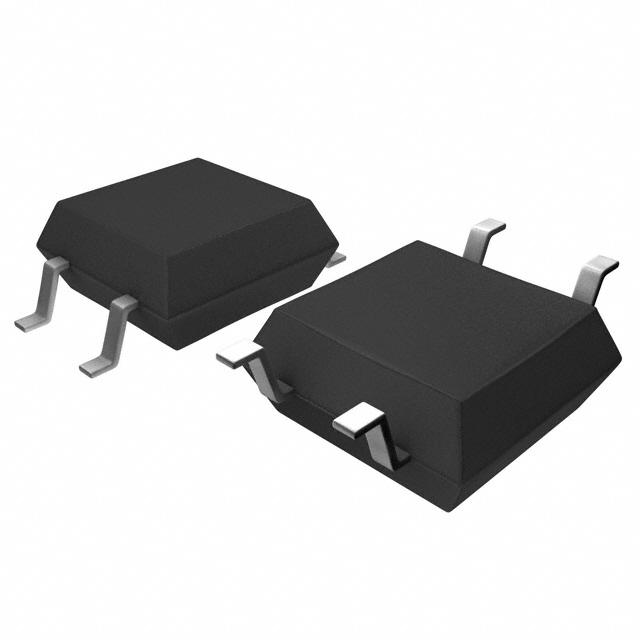

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy S2S5A00F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy S2S5A00F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | S2S5A00F |
|---|---|
| Manufacturer | Socle Technology Corporation |
| Description | OPTOISOLATOR 3.75KV TRIAC 4MFP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 12000 pcs | 24000 pcs | |||
|---|---|---|---|---|---|
| $0.112 | $0.11 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | S2S5A00F | Manufacturer | Socle Technology Corporation |
|---|---|---|---|
| Description | OPTOISOLATOR 3.75KV TRIAC 4MFP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 181476 pcs | Data sheet | S2S5 Series |
| Category | Isolators | Zero Crossing Circuit | No |
| Voltage - Off State | 600V | Voltage - Isolation | 3750Vrms |
| Voltage - Forward (Vf) (Typ) | 1.2V | Turn On Time | 100µs (Max) |
| Supplier Device Package | 4-MFP | Static dV/dt (Min) | 500V/µs |
| Series | - | Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing | Output Type | Triac |
| Other Names | 1855-1044-2 425-2425-2 425-2425-2-ND |
Operating Temperature | -30°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 20 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Detailed Description | Optoisolator Triac Output 3750Vrms 1 Channel 4-MFP |
| Current - On State (It (RMS)) (Max) | 50mA | Current - LED Trigger (Ift) (Max) | 10mA |
| Current - Hold (Ih) | 3.5mA | Current - DC Forward (If) (Max) | 50mA |
| Approvals | CSA, UR |
