PC4SD21NTZDF

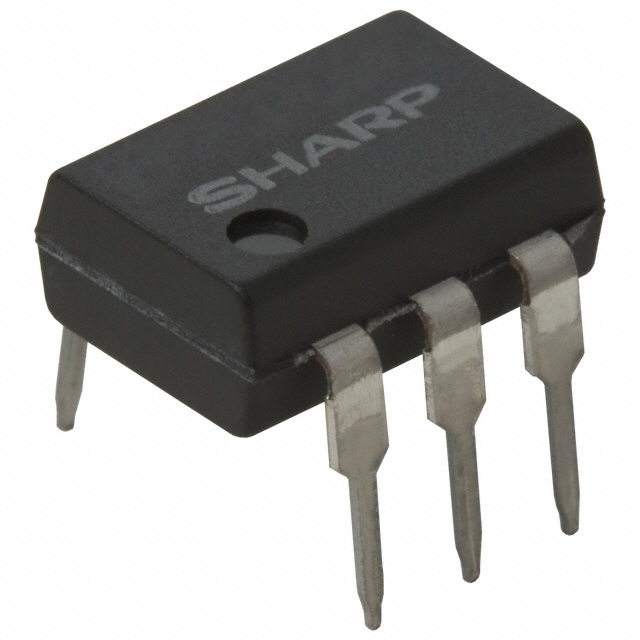

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PC4SD21NTZDF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PC4SD21NTZDF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PC4SD21NTZDF |
|---|---|
| Manufacturer | Socle Technology Corporation |
| Description | OPTOISOLATOR 5KV TRIAC 6DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.835 | $0.739 | $0.548 | $0.477 | ||
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.429 | $0.381 | $0.328 | $0.318 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PC4SD21NTZDF | Manufacturer | Socle Technology Corporation |
|---|---|---|---|
| Description | OPTOISOLATOR 5KV TRIAC 6DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 72473 pcs | Data sheet | PC4SD21NTZ Series |
| Category | Isolators | Zero Crossing Circuit | Yes |
| Voltage - Off State | 800V | Voltage - Isolation | 5000Vrms |
| Voltage - Forward (Vf) (Typ) | 1.2V | Turn On Time | 50µs (Max) |
| Supplier Device Package | 6-DIP | Static dV/dt (Min) | 500V/µs |
| Series | - | Packaging | Tube |
| Package / Case | 6-DIP (0.300", 7.62mm), 5 Leads | Output Type | Triac |
| Other Names | 425-2152-5 | Operating Temperature | -30°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | Optoisolator Triac Output 5000Vrms 1 Channel 6-DIP | Current - On State (It (RMS)) (Max) | 100mA |
| Current - LED Trigger (Ift) (Max) | 3mA | Current - Hold (Ih) | 3.5mA |
| Current - DC Forward (If) (Max) | 50mA | Approvals | CSA, UR |
