PC3H7J00000F

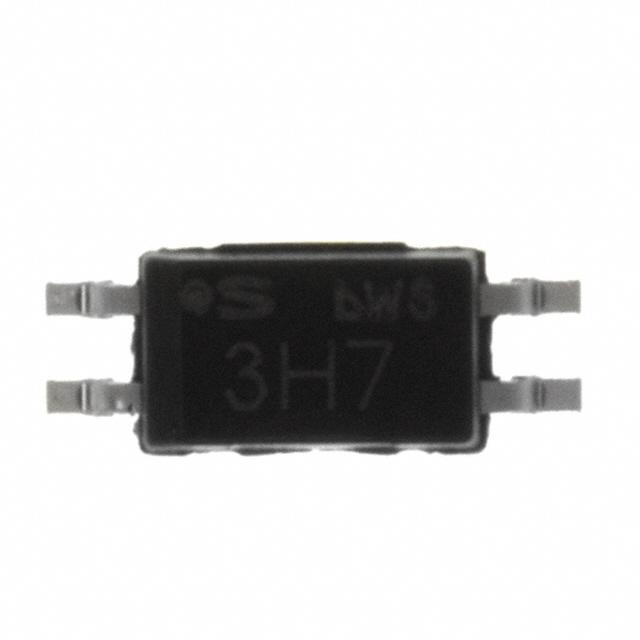

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PC3H7J00000F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PC3H7J00000F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PC3H7J00000F |
|---|---|
| Manufacturer | Socle Technology Corporation |
| Description | OPTOISO 2.5KV TRANS 4-MINI-FLAT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.238 | $0.185 | $0.153 | $0.132 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.116 | $0.10 | $0.079 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PC3H7J00000F | Manufacturer | Socle Technology Corporation |
|---|---|---|---|
| Description | OPTOISO 2.5KV TRANS 4-MINI-FLAT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 297108 pcs | Data sheet | PC3H7J00000F Series |
| Category | Isolators | Voltage - Output (Max) | 80V |
| Voltage - Isolation | 2500Vrms | Voltage - Forward (Vf) (Typ) | 1.2V |
| Vce Saturation (Max) | 200mV | Turn On / Turn Off Time (Typ) | - |
| Supplier Device Package | 4-Mini-Flat | Series | - |
| Rise / Fall Time (Typ) | 4µs, 3µs | Packaging | Cut Tape (CT) |
| Package / Case | 4-SOIC (0.173", 4.40mm Width) | Output Type | Transistor |
| Other Names | 425-2116-1 | Operating Temperature | -30°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | DC | Detailed Description | Optoisolator Transistor Output 2500Vrms 1 Channel 4-Mini-Flat |
| Current Transfer Ratio (Min) | 20% @ 1mA | Current Transfer Ratio (Max) | 400% @ 1mA |
| Current - Output / Channel | 50mA | Current - DC Forward (If) (Max) | 50mA |
