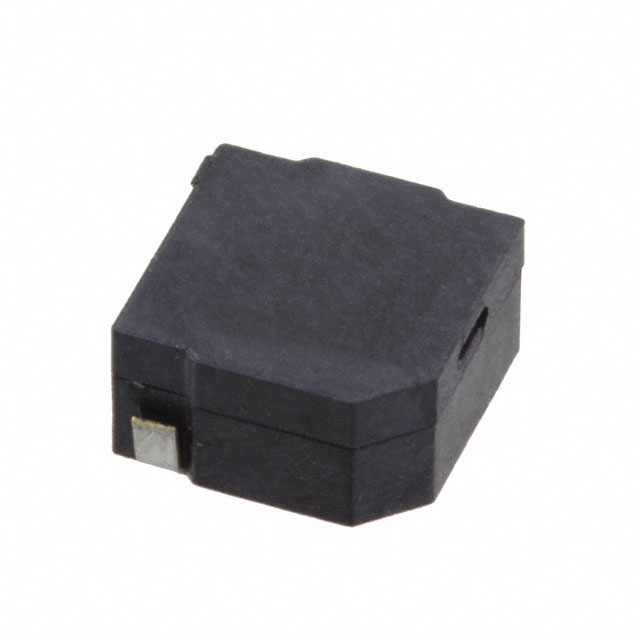

ST-0503-3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ST-0503-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ST-0503-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ST-0503-3 |
|---|---|
| Manufacturer | Soberton, Inc. |
| Description | AUDIO MAGNETIC XDCR 2-4V SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.028 | $0.813 | $0.742 | $0.693 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.644 | $0.591 | $0.555 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | ST-0503-3 | Manufacturer | Soberton, Inc. |
|---|---|---|---|
| Description | AUDIO MAGNETIC XDCR 2-4V SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 68682 pcs | Data sheet | ST-0503-3 Spec |
| Category | Audio Products | Voltage Range | 2 ~ 4V |
| Voltage - Rated | 3V | Termination | Solder Pads |
| Technology | Magnetic | Sound Pressure Level (SPL) | 75dB @ 3V, 10cm |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) | Series | ST |
| Ratings | - | Port Location | Side |
| Packaging | Original-Reel® | Other Names | 433-1108-6 |
| Operating Temperature | -20°C ~ 60°C | Operating Mode | Single Tone |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Zero-Peak Signal | Height - Seated (Max) | 0.114" (2.90mm) |
| Frequency | 4kHz | Duration | - |
| Driver Circuitry | Transducer, Externally Driven | Detailed Description | Buzzers Transducer, Externally Driven Magnetic 3V 110mA 4kHz 75dB @ 3V, 10cm Surface Mount Solder Pads |
| Current - Supply | 110mA | Approvals | - |
