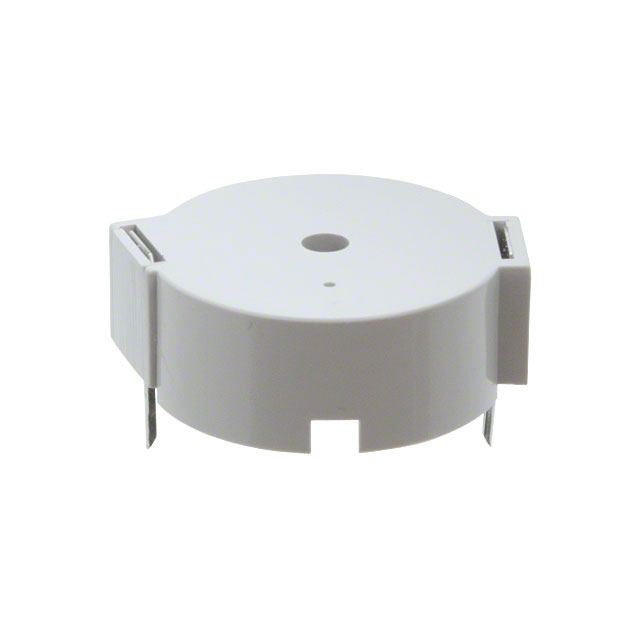

PT-2309
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PT-2309 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PT-2309 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PT-2309 |
|---|---|
| Manufacturer | Soberton, Inc. |
| Description | AUDIO PIEZO TRANSDUCER 1-30V TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.506 | $0.402 | $0.366 | $0.342 | $0.319 | |
| 300 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.291 | $0.271 | $0.253 | $0.247 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PT-2309 | Manufacturer | Soberton, Inc. |
|---|---|---|---|
| Description | AUDIO PIEZO TRANSDUCER 1-30V TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 83398 pcs | Data sheet | PT-2309 Datasheet |
| Category | Audio Products | Voltage Range | 1 ~ 30V |
| Voltage - Rated | 10V | Termination | PC Pins |
| Technology | Piezo | Sound Pressure Level (SPL) | 85dB @ 10V, 10cm |
| Size / Dimension | 0.886" Dia (22.50mm) | Series | PT |
| Ratings | - | Port Location | Top |
| Packaging | Bulk | Other Names | 433-1061 PT2309 |
| Operating Temperature | -20°C ~ 70°C | Operating Mode | Single Tone |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Peak-Peak Signal | Height - Seated (Max) | 0.354" (9.00mm) |
| Frequency | 2.048kHz | Duration | - |
| Driver Circuitry | Transducer, Externally Driven | Detailed Description | Buzzers Transducer, Externally Driven Piezo 10V 3mA 2.048kHz 85dB @ 10V, 10cm Through Hole PC Pins |
| Current - Supply | 3mA | Approvals | - |
