OLS249

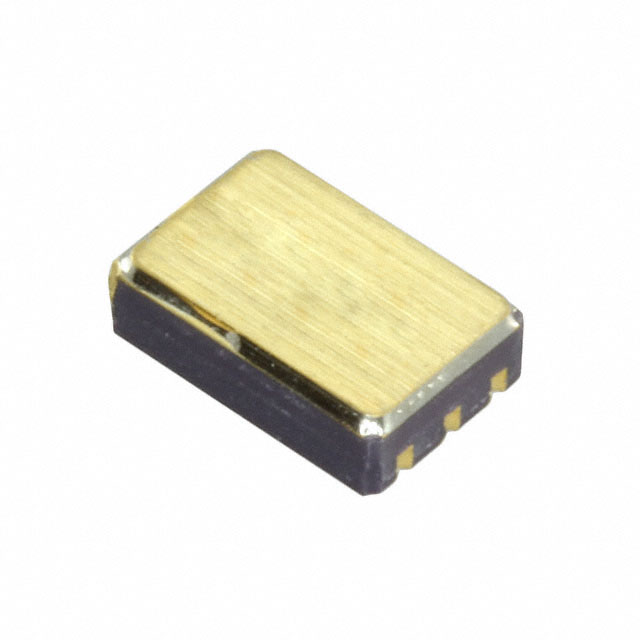

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy OLS249 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy OLS249 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | OLS249 |
|---|---|
| Manufacturer | Skyworks Solutions, Inc. |
| Description | OPTOISO 1.5KV TRANS W/BASE SMT |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $27.918 | $26.057 | $25.592 | $23.451 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | OLS249 | Manufacturer | Skyworks Solutions, Inc. |
|---|---|---|---|
| Description | OPTOISO 1.5KV TRANS W/BASE SMT | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 1391 pcs | Data sheet | OLS249Optocoupler Selection Guide |
| Category | Isolators | Voltage - Output (Max) | 40V |
| Voltage - Isolation | 1500VDC | Voltage - Forward (Vf) (Typ) | 1.8V (Max) |
| Vce Saturation (Max) | 300mV | Turn On / Turn Off Time (Typ) | - |
| Supplier Device Package | 6-CLCC (6.22x4.32) | Series | - |
| Rise / Fall Time (Typ) | 25µs, 25µs (Max) | Packaging | Bulk |
| Package / Case | 6-CLCC | Output Type | Transistor with Base |
| Other Names | 863-1603 | Operating Temperature | -55°C ~ 125°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 18 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Input Type | DC |
| Detailed Description | Optoisolator Transistor with Base Output 1500VDC 1 Channel 6-CLCC (6.22x4.32) | Current Transfer Ratio (Min) | - |
| Current Transfer Ratio (Max) | - | Current - Output / Channel | 50mA |
| Current - DC Forward (If) (Max) | 40mA |
