Home > Products > Integrated Circuits (ICs) > PMIC - LED Drivers > AAT3104IJQ-2-T1

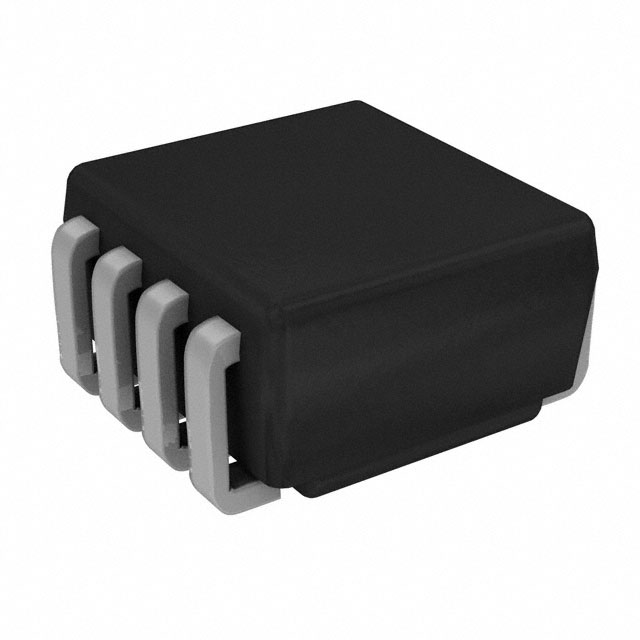

AAT3104IJQ-2-T1

AAT3104IJQ-2-T1

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AAT3104IJQ-2-T1 with confidence from Components-World.HK, 1 Year Warranty

Dowload AAT3104IJQ-2-T1 Details in PDF

Request a Quote

Part Number	AAT3104IJQ-2-T1
Manufacturer	Skyworks Solutions, Inc.
Description	IC LED DRIVER RGLTR DIM 10SC70JW
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1408517 pcs
Reference Price (In US Dollars)	3000 pcs
Reference Price (In US Dollars)	$0.016

Product parameter
Data sheet

Product parameter

Part Number	AAT3104IJQ-2-T1	Manufacturer	Skyworks Solutions, Inc.
Description	IC LED DRIVER RGLTR DIM 10SC70JW	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1408517 pcs	Data sheet	AAT3104
Category	Integrated Circuits (ICs)	Voltage - Supply (Min)	2.7V
Voltage - Supply (Max)	5.5V	Voltage - Output	5V
Type	DC DC Regulator	Topology	Switched Capacitor (Charge Pump)
Supplier Device Package	10-SC70JW	Series	-
Packaging	Tape & Reel (TR)	Package / Case	10-TFSOJ (0.070", 1.75mm Width)
Other Names	AAT3104IJQ2T1	Operating Temperature	-40°C ~ 85°C (TA)
Number of Outputs	4	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Internal Switch(s)	Yes	Frequency	1MHz
Dimming	S²Cwire	Detailed Description	LED Driver IC 4 Output DC DC Regulator Switched Capacitor (Charge Pump) S²Cwire Dimming 31mA 10-SC70JW
Current - Output / Channel	31mA	Applications	Backlight
