S12ME1FY

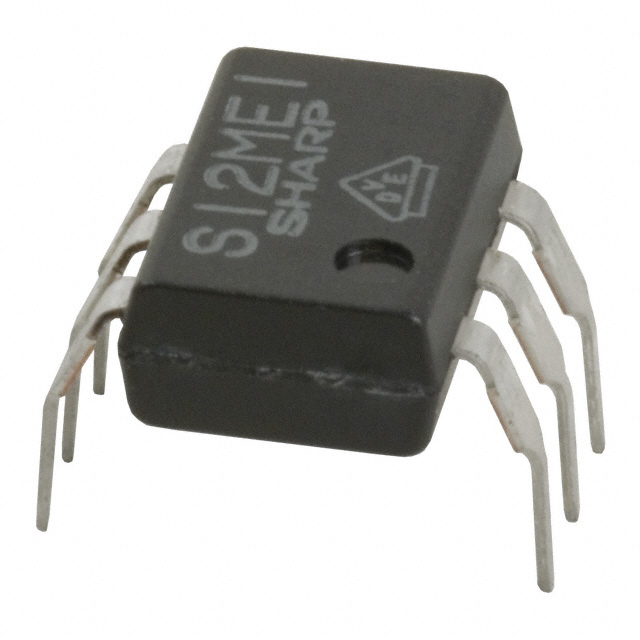

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy S12ME1FY with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy S12ME1FY with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | S12ME1FY |
|---|---|
| Manufacturer | Sharp Microelectronics |
| Description | OPTOISOLATOR 4KV SCR 6DIP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | S12ME1FY | Manufacturer | Sharp Microelectronics |
|---|---|---|---|
| Description | OPTOISOLATOR 4KV SCR 6DIP | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4910 pcs | Data sheet | S12ME1/F |
| Category | Isolators | Zero Crossing Circuit | No |
| Voltage - Off State | 400V | Voltage - Isolation | 4000Vrms |
| Voltage - Forward (Vf) (Typ) | 1.2V | Turn On Time | 50µs (Max) |
| Supplier Device Package | 6-DIP | Static dV/dt (Min) | 3V/µs |
| Series | - | Packaging | Tube |
| Package / Case | 6-DIP (0.300", 7.62mm), 5 Leads | Output Type | SCR |
| Other Names | 425-1239-5 | Operating Temperature | -30°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Detailed Description | Optoisolator SCR Output 4000Vrms 1 Channel 6-DIP | Current - On State (It (RMS)) (Max) | 200mA |
| Current - LED Trigger (Ift) (Max) | 10mA | Current - Hold (Ih) | 1mA |
| Current - DC Forward (If) (Max) | 50mA | Approvals | BSI, UR, VDE |
