Home > Products > Integrated Circuits (ICs) > PMIC - Voltage Regulators - Linear > PQ1L503M2SPQ

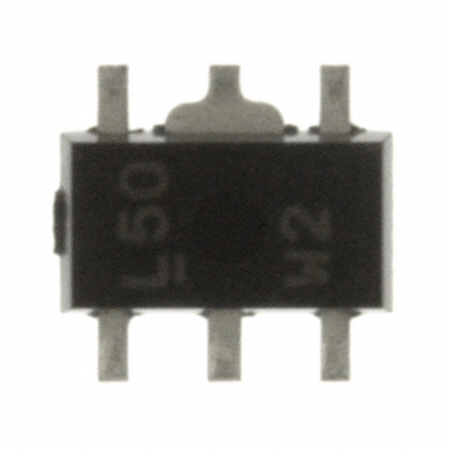

PQ1L503M2SPQ

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PQ1L503M2SPQ with confidence from Components-World.HK, 1 Year Warranty

Dowload PQ1L503M2SPQ Details in PDF

Request a Quote

Part Number	PQ1L503M2SPQ
Manufacturer	Sharp Microelectronics
Description	IC REG LINEAR 5V 300MA SOT89
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4242 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	PQ1L503M2SPQ	Manufacturer	Sharp Microelectronics
Description	IC REG LINEAR 5V 300MA SOT89	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4242 pcs	Data sheet	PQ1Lxx3M2SP Series
Category	Integrated Circuits (ICs)	Voltage Dropout (Max)	0.7V @ 300mA
Voltage - Output (Min/Fixed)	5V	Voltage - Output (Max)	-
Voltage - Input (Max)	16V	Supplier Device Package	SOT-89
Series	-	Protection Features	Over Current, Over Temperature
Packaging	Tape & Reel (TR)	Package / Case	SOT-89-5/6
PSRR	-	Output Type	Fixed
Output Configuration	Positive	Other Names	425-2311-2
Operating Temperature	-30°C ~ 80°C	Number of Regulators	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Detailed Description	Linear Voltage Regulator IC Positive Fixed 1 Output 5V 300mA SOT-89
Current - Quiescent (Iq)	500µA	Current - Output	300mA
Control Features	Enable
