PQ1CZ38M2ZZ

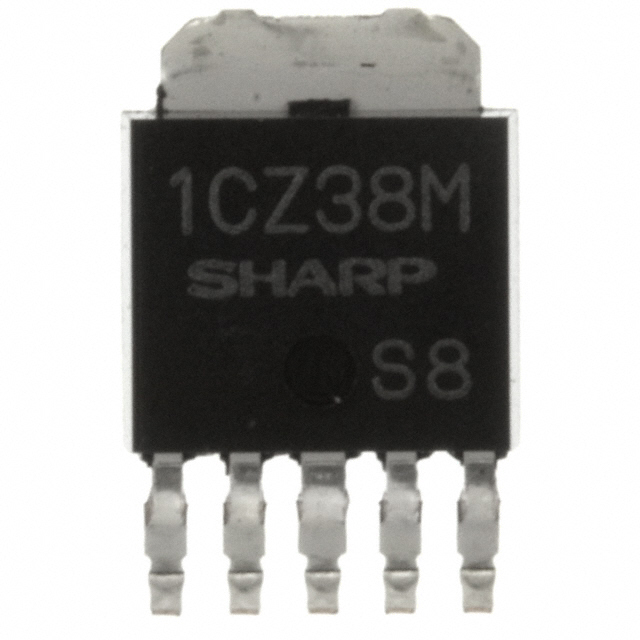

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PQ1CZ38M2ZZ with confidence from Components-World.HK, 1 Year Warranty
Dowload PQ1CZ38M2ZZ Details in PDFSee Product Specifications for product details.
Buy PQ1CZ38M2ZZ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PQ1CZ38M2ZZ |
|---|---|
| Manufacturer | Sharp Microelectronics |
| Description | IC REG BUCK INV ADJ 0.8A SC63 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PQ1CZ38M2ZZ | Manufacturer | Sharp Microelectronics |
|---|---|---|---|
| Description | IC REG BUCK INV ADJ 0.8A SC63 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5993 pcs | Data sheet | PQ1CZ38M2Z Series |
| Category | Integrated Circuits (ICs) | Voltage - Output (Min/Fixed) | ±1.26V |
| Voltage - Output (Max) | 35V, -30V | Voltage - Input (Min) | 8V |
| Voltage - Input (Max) | 35V | Topology | Buck |
| Synchronous Rectifier | No | Supplier Device Package | SC-63 |
| Series | - | Packaging | Tube |
| Package / Case | TO-252-6, DPak (5 Leads + Tab) | Output Type | Adjustable |
| Output Configuration | Positive or Negative | Other Names | 425-1769-5 |
| Operating Temperature | -20°C ~ 80°C (TA) | Number of Outputs | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Function | Step-Down |
| Frequency - Switching | 300kHz | Detailed Description | Buck Switching Regulator IC Positive or Negative Adjustable ±1.26V 1 Output 800mA TO-252-6, DPak (5 Leads + Tab) |
| Current - Output | 800mA |
