PQ1CG21H2RZH

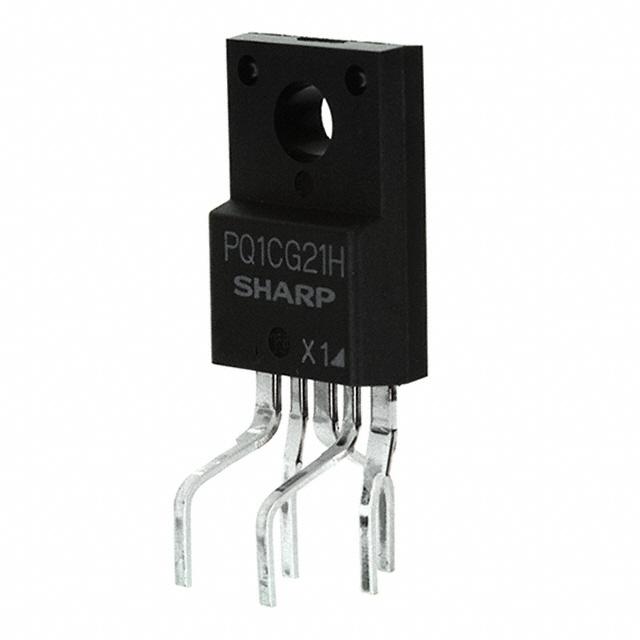

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PQ1CG21H2RZH with confidence from Components-World.HK, 1 Year Warranty
Dowload PQ1CG21H2RZH Details in PDFSee Product Specifications for product details.
Buy PQ1CG21H2RZH with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PQ1CG21H2RZH |
|---|---|
| Manufacturer | Sharp Microelectronics |
| Description | IC REG BUCK INV ADJ 1.5A TO220 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $0.652 | $0.588 | $0.525 | $0.472 | $0.42 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | PQ1CG21H2RZH | Manufacturer | Sharp Microelectronics |
|---|---|---|---|
| Description | IC REG BUCK INV ADJ 1.5A TO220 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 84194 pcs | Data sheet | PQ1CG21H2FZ/RZ |
| Category | Integrated Circuits (ICs) | Voltage - Output (Min/Fixed) | ±1.26V |
| Voltage - Output (Max) | 35V, -30V | Voltage - Input (Min) | 8V |
| Voltage - Input (Max) | 35V | Topology | Buck |
| Synchronous Rectifier | No | Supplier Device Package | TO-220-5 |
| Series | - | Packaging | Tube |
| Package / Case | TO-220-5 Formed Leads | Output Type | Adjustable |
| Output Configuration | Positive or Negative | Other Names | 425-2296-5 |
| Operating Temperature | -20°C ~ 80°C (TA) | Number of Outputs | 1 |
| Mounting Type | Through Hole | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Function | Step-Down | Frequency - Switching | 100kHz |
| Detailed Description | Buck Switching Regulator IC Positive or Negative Adjustable ±1.26V 1 Output 1.5A TO-220-5 Formed Leads | Current - Output | 1.5A |
