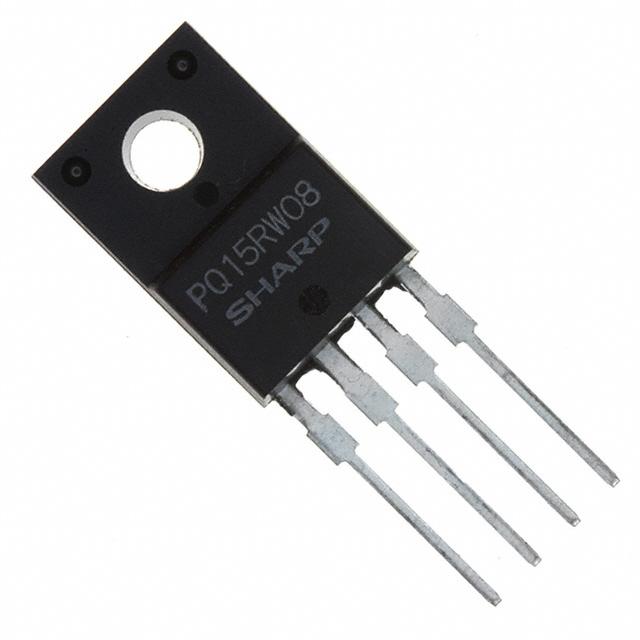

PQ15RW08
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PQ15RW08 with confidence from Components-World.HK, 1 Year Warranty
Dowload PQ15RW08 Details in PDFSee Product Specifications for product details.
Buy PQ15RW08 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PQ15RW08 |
|---|---|
| Manufacturer | Sharp Microelectronics |
| Description | IC REG LIN POS ADJ 800MA TO220-4 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PQ15RW08 | Manufacturer | Sharp Microelectronics |
|---|---|---|---|
| Description | IC REG LIN POS ADJ 800MA TO220-4 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5274 pcs | Data sheet | PQ15RW08/11/21 |
| Category | Integrated Circuits (ICs) | Voltage Dropout (Max) | 0.5A @ 500mA |
| Voltage - Output (Min/Fixed) | 3V | Voltage - Output (Max) | 15V |
| Voltage - Input (Max) | 20V | Supplier Device Package | TO-220-4 |
| Series | - | Protection Features | Over Current, Over Temperature |
| Packaging | Tube | Package / Case | TO-220-4 |
| PSRR | 55dB (120Hz) | Output Type | Adjustable |
| Output Configuration | Positive | Other Names | 425-1638-5 |
| Operating Temperature | -20°C ~ 80°C | Number of Regulators | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Detailed Description | Linear Voltage Regulator IC Positive Adjustable 1 Output 3 V ~ 15 V 800mA TO-220-4 |
| Current - Quiescent (Iq) | 8mA | Current - Output | 800mA |
| Control Features | - |
