PQ120RDA1SZH

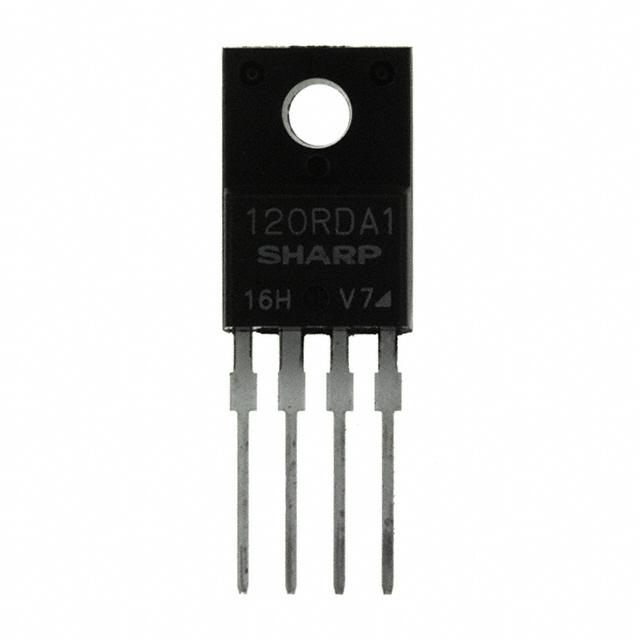

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PQ120RDA1SZH with confidence from Components-World.HK, 1 Year Warranty
Dowload PQ120RDA1SZH Details in PDFSee Product Specifications for product details.
Buy PQ120RDA1SZH with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PQ120RDA1SZH |
|---|---|
| Manufacturer | Sharp Microelectronics |
| Description | IC REG LINEAR 12V 1A TO220-4 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
Product parameter
| Part Number | PQ120RDA1SZH | Manufacturer | Sharp Microelectronics |
|---|---|---|---|
| Description | IC REG LINEAR 12V 1A TO220-4 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4152 pcs | Data sheet | |
| Category | Integrated Circuits (ICs) | Voltage Dropout (Max) | 0.5V @ 500mA |
| Voltage - Output (Min/Fixed) | 12V | Voltage - Output (Max) | - |
| Voltage - Input (Max) | 24V | Supplier Device Package | TO-220-4 |
| Series | - | Protection Features | Over Current, Over Temperature |
| Packaging | Tube | Package / Case | TO-220-4 |
| PSRR | 55dB (120Hz) | Output Type | Fixed |
| Output Configuration | Positive | Other Names | 425-2671-5 425-2671-5-ND 425-2692-5 PQ120RDA1SZH-ND |
| Operating Temperature | -30°C ~ 85°C | Number of Regulators | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Detailed Description | Linear Voltage Regulator IC Positive Fixed 1 Output 12V 1A TO-220-4 |
| Current - Quiescent (Iq) | 8mA | Current - Output | 1A |
| Control Features | Enable |
