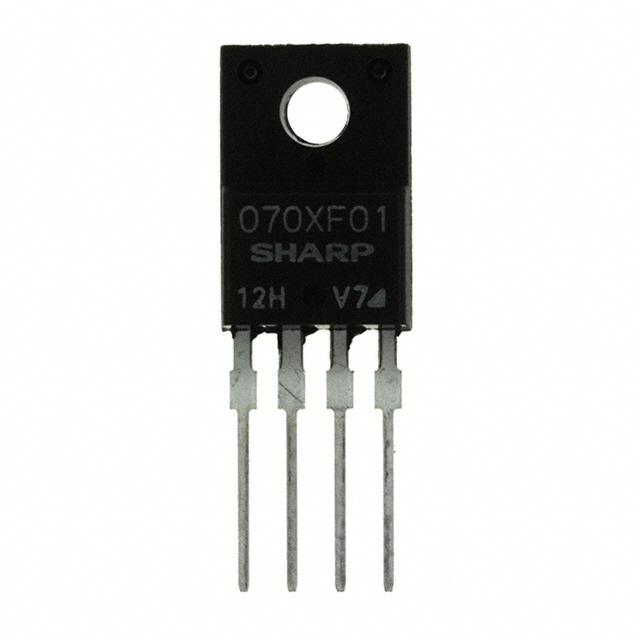

PQ070XF01SZH
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PQ070XF01SZH with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PQ070XF01SZH with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PQ070XF01SZH |
|---|---|
| Manufacturer | Sharp Microelectronics |
| Description | IC REG LINEAR POS ADJ 1A TO220-4 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.377 | $0.334 | $0.302 | $0.264 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.232 | $0.205 | $0.162 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PQ070XF01SZH | Manufacturer | Sharp Microelectronics |
|---|---|---|---|
| Description | IC REG LINEAR POS ADJ 1A TO220-4 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 138329 pcs | Data sheet | PQ070XF01SZH |
| Category | Integrated Circuits (ICs) | Voltage Dropout (Max) | 0.5V @ 500mA |
| Voltage - Output (Min/Fixed) | 1.5V | Voltage - Output (Max) | 7V |
| Voltage - Input (Max) | 10V | Supplier Device Package | TO-220-4 |
| Series | - | Protection Features | Over Current, Over Temperature |
| Packaging | Tube | Package / Case | TO-220-4 |
| PSRR | 60dB (120Hz) | Output Type | Adjustable |
| Output Configuration | Positive | Other Names | 425-2689-5 PQ070XF01SZH-ND |
| Operating Temperature | -40°C ~ 85°C | Number of Regulators | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Detailed Description | Linear Voltage Regulator IC Positive Adjustable 1 Output 1.5 V ~ 7 V 1A TO-220-4 |
| Current - Quiescent (Iq) | 2mA | Current - Output | 1A |
| Control Features | - |
