PQ05RD1BJ00H

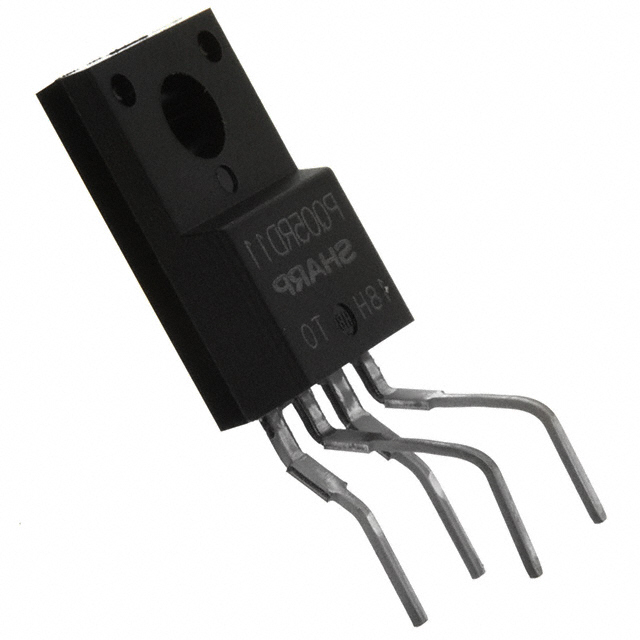

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PQ05RD1BJ00H with confidence from Components-World.HK, 1 Year Warranty
Dowload PQ05RD1BJ00H Details in PDFSee Product Specifications for product details.
Buy PQ05RD1BJ00H with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PQ05RD1BJ00H |
|---|---|
| Manufacturer | Sharp Microelectronics |
| Description | IC REG LINEAR 5V 1A TO220 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.489 | $0.435 | $0.393 | $0.343 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.301 | $0.266 | $0.21 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PQ05RD1BJ00H | Manufacturer | Sharp Microelectronics |
|---|---|---|---|
| Description | IC REG LINEAR 5V 1A TO220 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 111007 pcs | Data sheet | PQxxRD1BJ00H Specification |
| Category | Integrated Circuits (ICs) | Voltage Dropout (Max) | 0.5V @ 500mA |
| Voltage - Output (Min/Fixed) | 5V | Voltage - Output (Max) | - |
| Voltage - Input (Max) | 20V | Supplier Device Package | TO-220 |
| Series | - | Protection Features | Over Current, Over Temperature |
| Packaging | Tube | Package / Case | TO-220-4 (Formed Leads) |
| PSRR | 55dB (120Hz) | Output Type | Fixed |
| Output Configuration | Positive | Other Names | 425-2255-5 |
| Operating Temperature | -20°C ~ 80°C | Number of Regulators | 1 |
| Mounting Type | Through Hole | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | Linear Voltage Regulator IC Positive Fixed 1 Output 5V 1A TO-220 | Current - Quiescent (Iq) | 10mA |
| Current - Output | 1A | Control Features | Enable |
