PQ05DZ11J00H

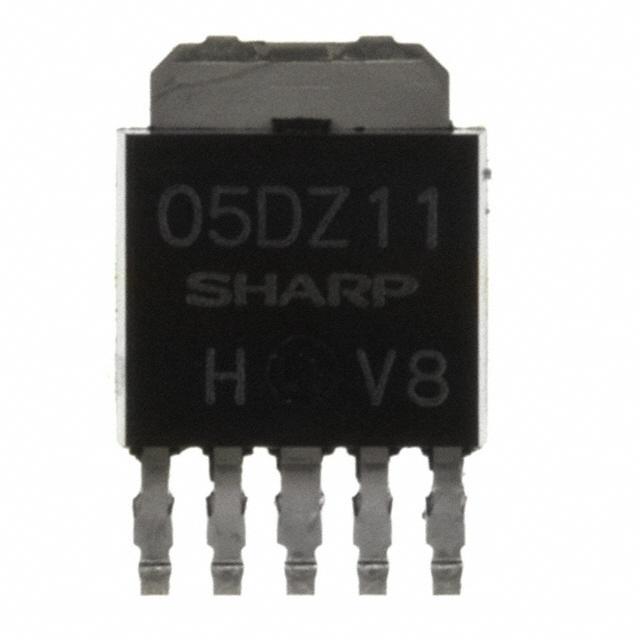

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PQ05DZ11J00H with confidence from Components-World.HK, 1 Year Warranty
Dowload PQ05DZ11J00H Details in PDFSee Product Specifications for product details.
Buy PQ05DZ11J00H with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PQ05DZ11J00H |
|---|---|
| Manufacturer | Sharp Microelectronics |
| Description | IC REG LINEAR 5V 1A SC63 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PQ05DZ11J00H | Manufacturer | Sharp Microelectronics |
|---|---|---|---|
| Description | IC REG LINEAR 5V 1A SC63 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4681 pcs | Data sheet | PQxxDZx1J00H, PQ3DZx3J000H |
| Category | Integrated Circuits (ICs) | Voltage Dropout (Max) | 0.5V @ 500mA |
| Voltage - Output (Min/Fixed) | 5V | Voltage - Output (Max) | - |
| Voltage - Input (Max) | 24V | Supplier Device Package | SC-63 |
| Series | - | Protection Features | Over Current, Over Temperature |
| Packaging | Tube | Package / Case | TO-252-6, DPak (5 Leads + Tab) |
| PSRR | 60dB (120Hz) | Output Type | Fixed |
| Output Configuration | Positive | Other Names | 425-2251-5 |
| Operating Temperature | -20°C ~ 80°C | Number of Regulators | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Detailed Description | Linear Voltage Regulator IC Positive Fixed 1 Output 5V 1A SC-63 |
| Current - Quiescent (Iq) | 10mA | Current - Output | 1A |
| Control Features | Enable |
