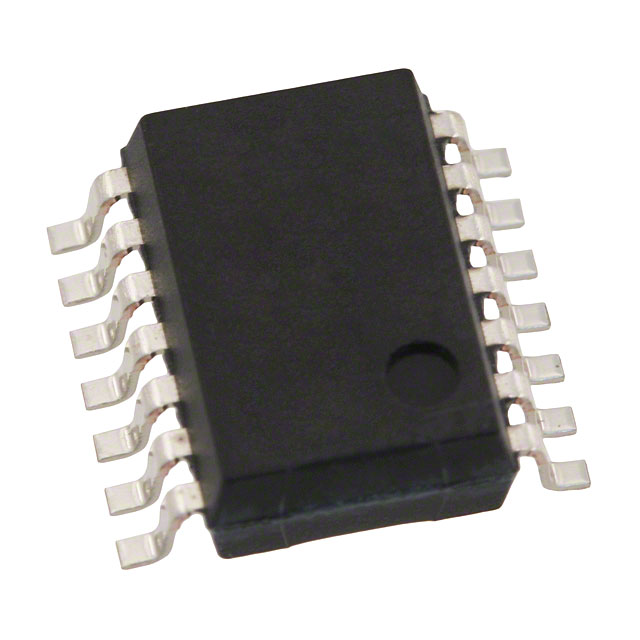

PC928J00000F
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PC928J00000F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PC928J00000F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PC928J00000F |
|---|---|
| Manufacturer | Sharp Microelectronics |
| Description | OPTOISO 4KV 1CH GATE DRVR 14SMT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PC928J00000F | Manufacturer | Sharp Microelectronics |
|---|---|---|---|
| Description | OPTOISO 4KV 1CH GATE DRVR 14SMT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5894 pcs | Data sheet | PC928J00000F Series |
| Category | Isolators | Voltage - Supply | 15 V ~ 30 V |
| Voltage - Isolation | 4000Vrms | Voltage - Forward (Vf) (Typ) | 1.2V |
| Technology | Optical Coupling | Supplier Device Package | 14-SMT |
| Series | OPIC™ | Rise / Fall Time (Typ) | 200ns, 200ns |
| Pulse Width Distortion (Max) | - | Propagation Delay tpLH / tpHL (Max) | 2µs, 2µs |
| Packaging | Tube | Package / Case | 14-SOIC (0.256", 6.50mm Width) |
| Other Names | 425-2209-5 | Operating Temperature | -25°C ~ 80°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 400mA Gate Driver Optical Coupling 4000Vrms 1 Channel 14-SMT | Current - Peak Output | 400mA |
| Current - Output High, Low | - | Current - DC Forward (If) (Max) | 25mA |
| Common Mode Transient Immunity (Min) | 1.5kV/µs | Approvals | UR |
