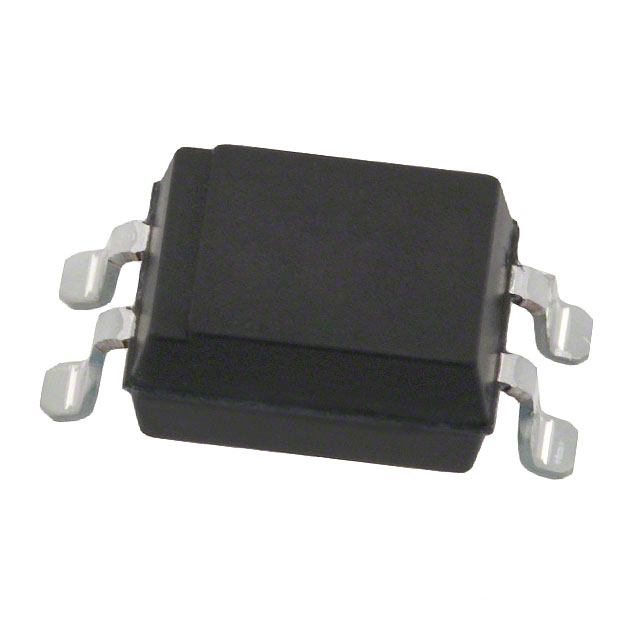

PC817X2NIP0F
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PC817X2NIP0F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PC817X2NIP0F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PC817X2NIP0F |
|---|---|
| Manufacturer | Sharp Microelectronics |
| Description | OPTOISOLATOR 5KV TRANS 4SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.227 | $0.178 | $0.148 | $0.128 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.114 | $0.098 | $0.076 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PC817X2NIP0F | Manufacturer | Sharp Microelectronics |
|---|---|---|---|
| Description | OPTOISOLATOR 5KV TRANS 4SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 250148 pcs | Data sheet | PC817XxNiP0F Series |
| Category | Isolators | Voltage - Output (Max) | 80V |
| Voltage - Isolation | 5000Vrms | Voltage - Forward (Vf) (Typ) | 1.2V |
| Vce Saturation (Max) | 200mV | Turn On / Turn Off Time (Typ) | - |
| Supplier Device Package | 4-SMD | Series | - |
| Rise / Fall Time (Typ) | 4µs, 3µs | Packaging | Original-Reel® |
| Package / Case | 4-SMD, Gull Wing | Output Type | Transistor |
| Other Names | 425-2192-6 | Operating Temperature | -30°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | DC | Detailed Description | Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD |
| Current Transfer Ratio (Min) | 130% @ 5mA | Current Transfer Ratio (Max) | 230% @ 5mA |
| Current - Output / Channel | 50mA | Current - DC Forward (If) (Max) | 50mA |
