PC512J00000F

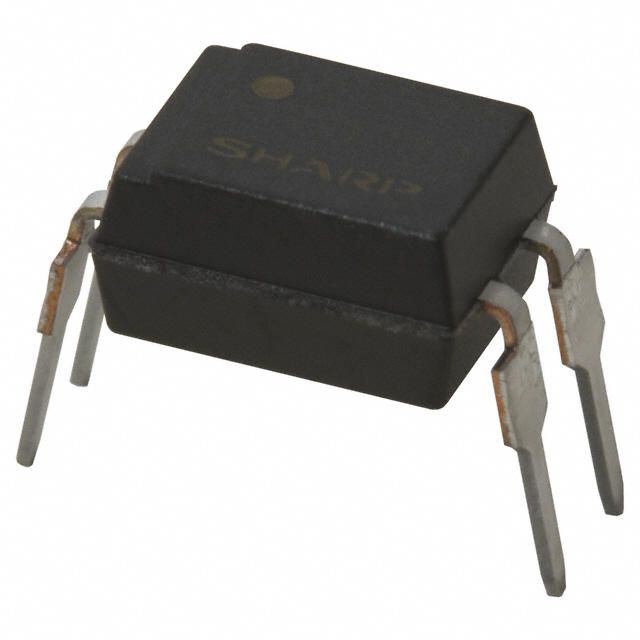

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PC512J00000F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PC512J00000F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PC512J00000F |
|---|---|
| Manufacturer | Sharp Microelectronics |
| Description | OPTOISOLATOR 5KV TRANS MODULE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PC512J00000F | Manufacturer | Sharp Microelectronics |
|---|---|---|---|
| Description | OPTOISOLATOR 5KV TRANS MODULE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5639 pcs | Data sheet | PC512 |
| Category | Isolators | Voltage - Output (Max) | 35V |
| Voltage - Isolation | 5000Vrms | Voltage - Forward (Vf) (Typ) | 1.2V |
| Vce Saturation (Max) | 400mV | Turn On / Turn Off Time (Typ) | - |
| Supplier Device Package | 4-DIP | Series | - |
| Rise / Fall Time (Typ) | 3µs, 4µs | Packaging | Tube |
| Package / Case | 4-DIP Module | Output Type | Transistor |
| Other Names | 425-2153-5 | Operating Temperature | -25°C ~ 85°C |
| Number of Channels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | DC | Detailed Description | Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP |
| Current Transfer Ratio (Min) | - | Current Transfer Ratio (Max) | - |
| Current - Output / Channel | 20mA | Current - DC Forward (If) (Max) | 50mA |
