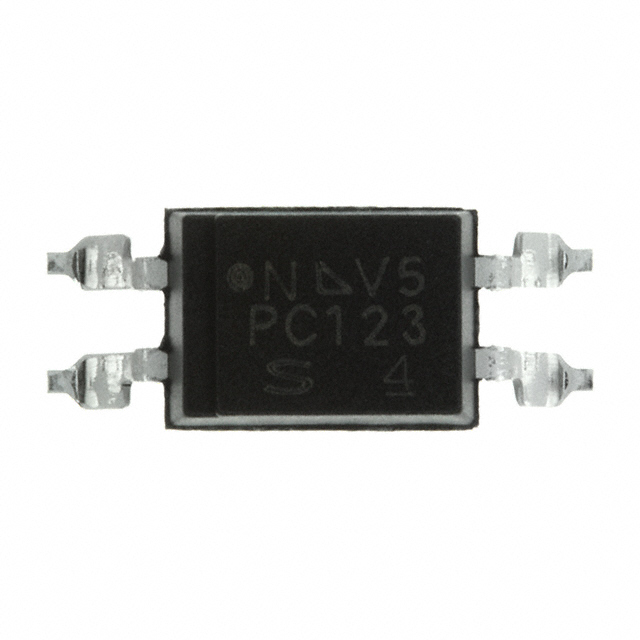

PC123X5YUP0F
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PC123X5YUP0F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PC123X5YUP0F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PC123X5YUP0F |
|---|---|
| Manufacturer | Sharp Microelectronics |
| Description | OPTOISOLATOR 5KV TRANSISTOR 4SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PC123X5YUP0F | Manufacturer | Sharp Microelectronics |
|---|---|---|---|
| Description | OPTOISOLATOR 5KV TRANSISTOR 4SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5822 pcs | Data sheet | PC123XNNSZ0F Series |
| Category | Isolators | Voltage - Output (Max) | 70V |
| Voltage - Isolation | 5000Vrms | Voltage - Forward (Vf) (Typ) | 1.2V |
| Vce Saturation (Max) | 200mV | Turn On / Turn Off Time (Typ) | - |
| Supplier Device Package | 4-SMD | Series | - |
| Rise / Fall Time (Typ) | 4µs, 3µs | Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing | Output Type | Transistor |
| Other Names | 425-2530-2 | Operating Temperature | -30°C ~ 100°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | DC | Detailed Description | Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD |
| Current Transfer Ratio (Min) | 200% @ 5mA | Current Transfer Ratio (Max) | 400% @ 5mA |
| Current - Output / Channel | 20mA | Current - DC Forward (If) (Max) | 50mA |
