Home > Products > Circuit Protection > TVS - Diodes > SMP1255PUTGTR

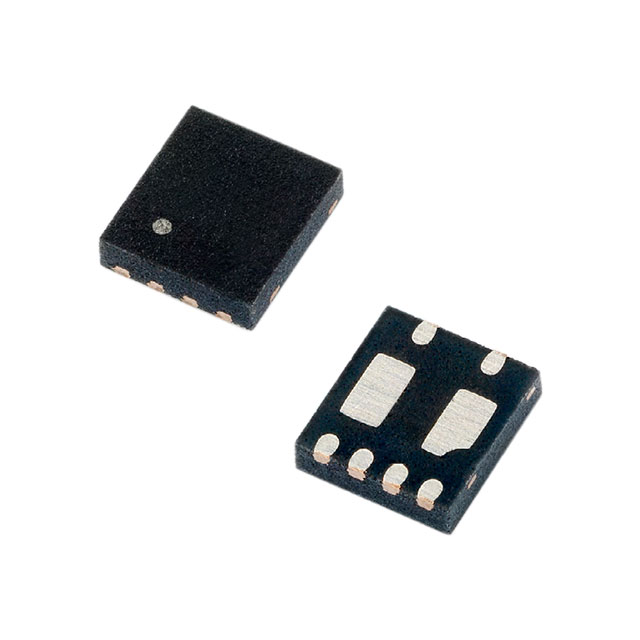

SMP1255PUTGTR

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMP1255PUTGTR with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SMP1255PUTGTR
Manufacturer	Sensitron Semiconductor / SMC Diode Solutions
Description	TVS DIODE 4V 8.5V 6UDFN
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 275674 pcs
Reference Price (In US Dollars)	3000 pcs	6000 pcs	15000 pcs
Reference Price (In US Dollars)	$0.082	$0.077	$0.071

Product parameter
Data sheet

Product parameter

Part Number	SMP1255PUTGTR	Manufacturer	Sensitron Semiconductor / SMC Diode Solutions
Description	TVS DIODE 4V 8.5V 6UDFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	275674 pcs	Data sheet	SMP1255PUTG
Category	Circuit Protection	Voltage - Reverse Standoff (Typ)	4V (Max)
Voltage - Clamping (Max) @ Ipp	8.5V	Voltage - Breakdown (Min)	4.5V
Unidirectional Channels	3	Type	Steering (Rail to Rail)
Supplier Device Package	6-UDFN (1.8x2)	Series	-
Power Line Protection	Yes	Power - Peak Pulse	-
Packaging	Tape & Reel (TR)	Package / Case	6-UFDFN Exposed Pad
Other Names	1655-1698-2	Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Current - Peak Pulse (10/1000µs)	4A (8/20µs)	Capacitance @ Frequency	0.5pF @ 1MHz
Applications	USB OTG
