SD32305TR

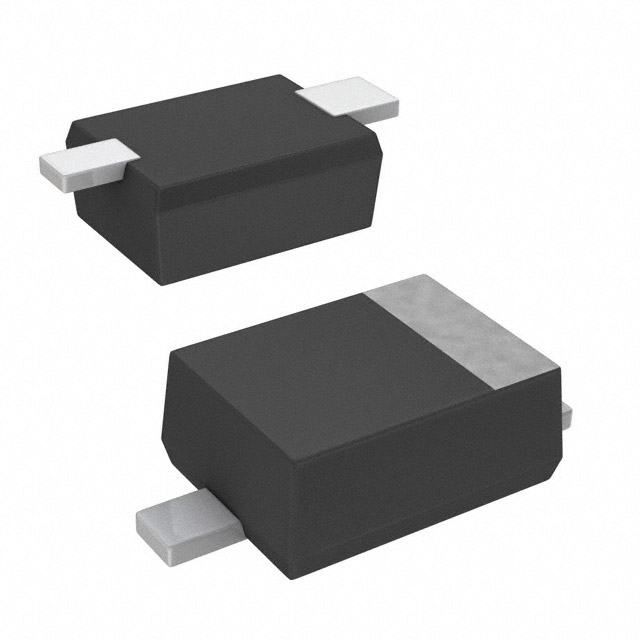

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SD32305TR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SD32305TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SD32305TR |
|---|---|
| Manufacturer | Sensitron Semiconductor / SMC Diode Solutions |
| Description | TVS DIODE 5V 9.8V SOD323 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 15000 pcs | ||
|---|---|---|---|---|---|
| $0.015 | $0.013 | $0.011 | |||
| 30000 pcs | 75000 pcs | 150000 pcs | |||
| $0.01 | $0.01 | $0.009 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SD32305TR | Manufacturer | Sensitron Semiconductor / SMC Diode Solutions |
|---|---|---|---|
| Description | TVS DIODE 5V 9.8V SOD323 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2673507 pcs | Data sheet | SD32303 - SD32324 |
| Category | Circuit Protection | Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Clamping (Max) @ Ipp | 9.8V | Voltage - Breakdown (Min) | 6V |
| Unidirectional Channels | 1 | Type | Zener |
| Supplier Device Package | SOD-323 | Series | - |
| Power Line Protection | No | Power - Peak Pulse | 300W |
| Packaging | Tape & Reel (TR) | Package / Case | SC-76, SOD-323 |
| Other Names | 1655-1528-2 SD32305 |
Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) | Capacitance @ Frequency | 600pF @ 1MHz |
| Applications | General Purpose |
