Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Arrays > 403CNQ100

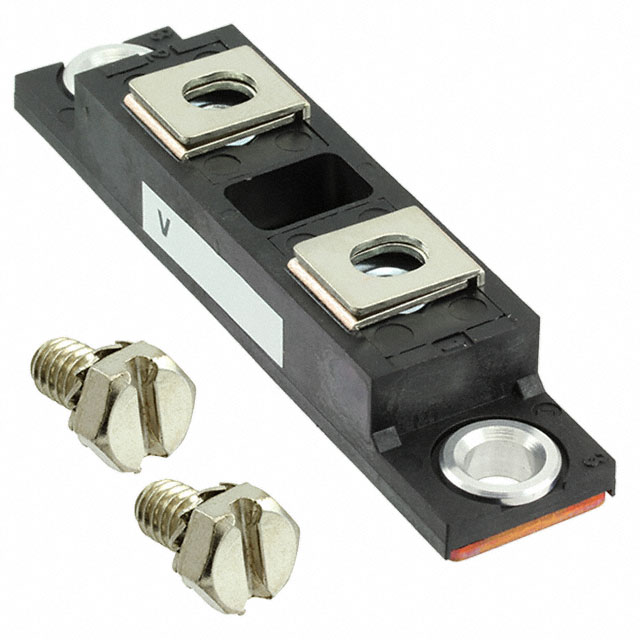

403CNQ100

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 403CNQ100 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	403CNQ100
Manufacturer	Sensitron Semiconductor / SMC Diode Solutions
Description	DIODE ARRAY SCHOTTKY 100V PRM4
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1452 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs
Reference Price (In US Dollars)	$27.004	$25.366

Product parameter
Data sheet

Product parameter

Part Number	403CNQ100	Manufacturer	Sensitron Semiconductor / SMC Diode Solutions
Description	DIODE ARRAY SCHOTTKY 100V PRM4	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1452 pcs	Data sheet	403CNQ080(R), 403CNQ100(R)
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	830mV @ 200A
Voltage - DC Reverse (Vr) (Max)	100V	Supplier Device Package	PRM4 (Isolated)
Speed	Fast Recovery = 200mA (Io)	Series	-
Packaging	Bulk	Package / Case	PRM4
Other Names	1655-1328	Operating Temperature - Junction	-55°C ~ 175°C
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	6 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Schottky	Diode Configuration	1 Pair Common Cathode
Detailed Description	Diode Array 1 Pair Common Cathode Schottky 100V Chassis Mount PRM4	Current - Reverse Leakage @ Vr	6mA @ 100V
Current - Average Rectified (Io) (per Diode)	-
