SD05C.TCT

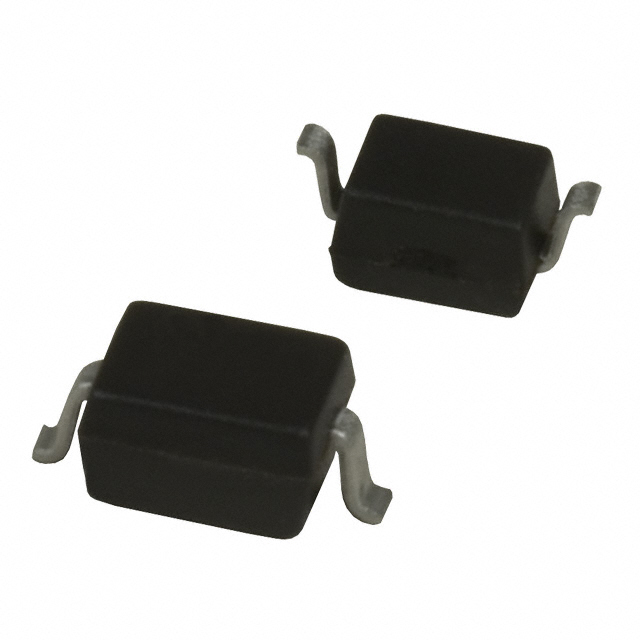

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SD05C.TCT with confidence from Components-World.HK, 1 Year Warranty
Dowload SD05C.TCT Details in PDFSee Product Specifications for product details.
Buy SD05C.TCT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SD05C.TCT |
|---|---|
| Manufacturer | Semtech |
| Description | TVS DIODE 5V 14.5V SOD323 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.377 | $0.329 | $0.292 | $0.254 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.221 | $0.188 | $0.15 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SD05C.TCT | Manufacturer | Semtech |
|---|---|---|---|
| Description | TVS DIODE 5V 14.5V SOD323 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 150737 pcs | Data sheet | SD05C-SD24C |
| Category | Circuit Protection | Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Clamping (Max) @ Ipp | 14.5V | Voltage - Breakdown (Min) | 6V |
| Type | Zener | Supplier Device Package | SOD-323 |
| Series | - | Power Line Protection | No |
| Power - Peak Pulse | 350W | Packaging | Cut Tape (CT) |
| Package / Case | SC-76, SOD-323 | Other Names | SD05CCT |
| Operating Temperature | -55°C ~ 125°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Current - Peak Pulse (10/1000µs) | 24A (8/20µs) |
| Capacitance @ Frequency | 200pF @ 1MHz | Bidirectional Channels | 1 |
| Applications | General Purpose |
