SC2545TSTRT

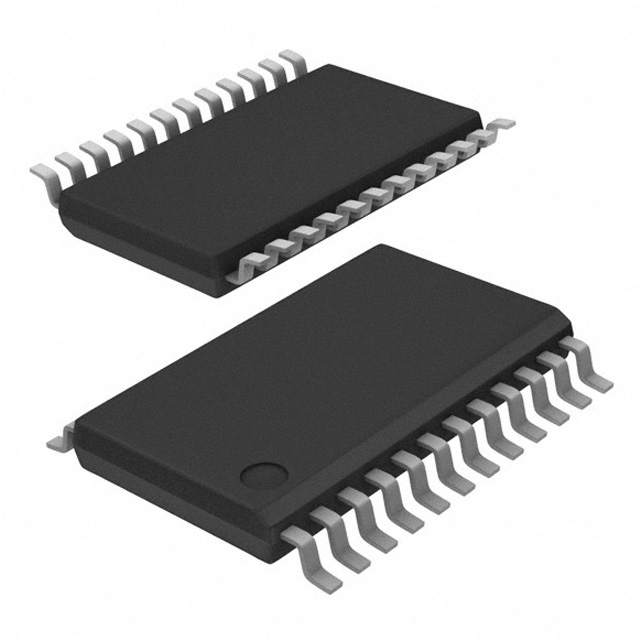

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SC2545TSTRT with confidence from Components-World.HK, 1 Year Warranty
Dowload SC2545TSTRT Details in PDFSee Product Specifications for product details.
Buy SC2545TSTRT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SC2545TSTRT |
|---|---|
| Manufacturer | Semtech |
| Description | IC REG CTRLR BUCK 24TSSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2500 pcs | ||||
|---|---|---|---|---|---|
| $0.684 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SC2545TSTRT | Manufacturer | Semtech |
|---|---|---|---|
| Description | IC REG CTRLR BUCK 24TSSOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 52168 pcs | Data sheet | SC2545 |
| Category | Integrated Circuits (ICs) | Voltage - Supply (Vcc/Vdd) | 4.5 V ~ 28 V |
| Topology | Buck | Synchronous Rectifier | Yes |
| Supplier Device Package | 24-TSSOP | Series | - |
| Serial Interfaces | - | Packaging | Tape & Reel (TR) |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) | Output Type | Transistor Driver |
| Output Phases | 2 | Output Configuration | Positive |
| Operating Temperature | -40°C ~ 85°C (TA) | Number of Outputs | 2 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Function | Step-Down | Frequency - Switching | 100kHz ~ 300kHz |
| Duty Cycle (Max) | 90% | Detailed Description | Buck Regulator Positive Output Step-Down DC-DC Controller IC 24-TSSOP |
| Control Features | Current Limit, Enable, Frequency Control, Phase Control, Soft Start | Clock Sync | No |
