RCLAMP0502A.TCT

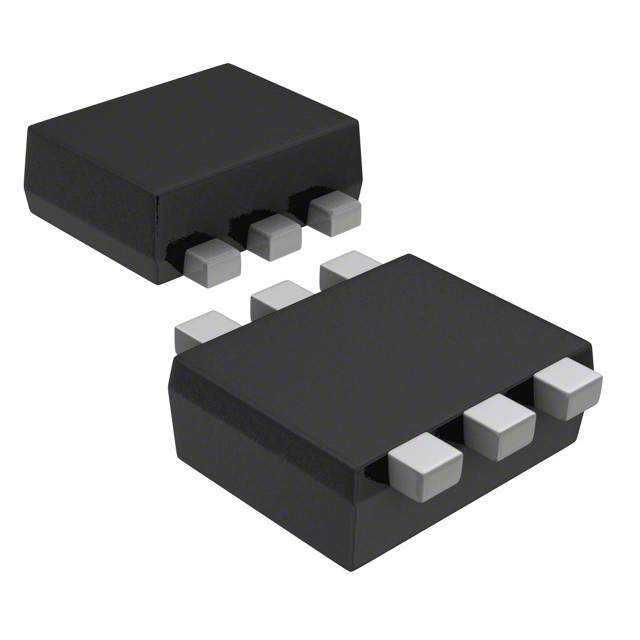

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RCLAMP0502A.TCT with confidence from Components-World.HK, 1 Year Warranty
Dowload RCLAMP0502A.TCT Details in PDFSee Product Specifications for product details.
Buy RCLAMP0502A.TCT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RCLAMP0502A.TCT |
|---|---|
| Manufacturer | Semtech |
| Description | TVS DIODE 5V 18V SC89-6 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.339 | $0.297 | $0.263 | $0.229 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.199 | $0.17 | $0.136 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | RCLAMP0502A.TCT | Manufacturer | Semtech |
|---|---|---|---|
| Description | TVS DIODE 5V 18V SC89-6 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 175286 pcs | Data sheet | RCLAMP0502A |
| Category | Circuit Protection | Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Clamping (Max) @ Ipp | 18V | Voltage - Breakdown (Min) | 6V |
| Unidirectional Channels | 2 | Type | Steering (Rail to Rail) |
| Supplier Device Package | SC-89-6 | Series | RailClamp® |
| Power Line Protection | Yes | Power - Peak Pulse | 50W |
| Packaging | Cut Tape (CT) | Package / Case | SOT-563, SOT-666 |
| Other Names | RCLAMP0502ACT | Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Current - Peak Pulse (10/1000µs) | 3A (8/20µs) | Capacitance @ Frequency | 0.9pF @ 1MHz |
| Applications | Ethernet, HDMI |
