ECLAMP2458P.TCT

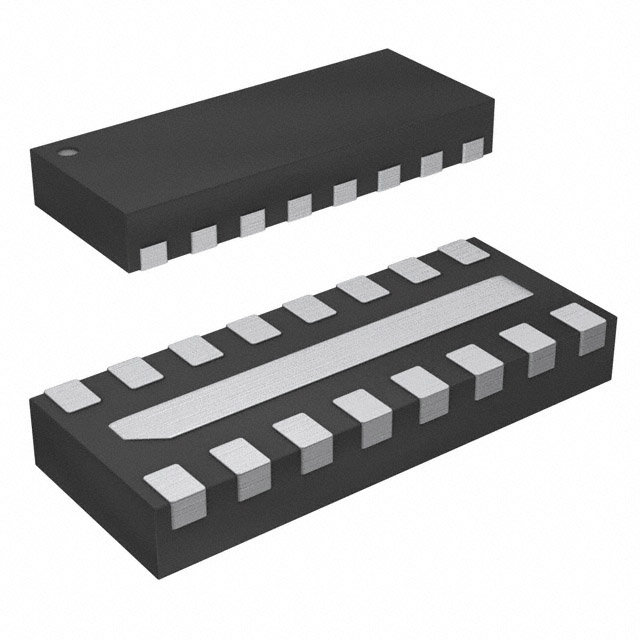

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ECLAMP2458P.TCT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ECLAMP2458P.TCT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ECLAMP2458P.TCT |
|---|---|
| Manufacturer | Semtech |
| Description | FILTER LC(PI) 28NH/12PF ESD SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | |||
|---|---|---|---|---|---|
| $0.269 | $0.266 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ECLAMP2458P.TCT | Manufacturer | Semtech |
|---|---|---|---|
| Description | FILTER LC(PI) 28NH/12PF ESD SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 81104 pcs | Data sheet | EClamp2458P |
| Category | Filters | Voltage - Rated | - |
| Values | L = 28nH, C = 12pF | Type | Low Pass |
| Technology | LC (Pi) | Size / Dimension | 0.157" L x 0.063" W (4.00mm x 1.60mm) |
| Series | EMIClamp® | Resistance - Channel (Ohms) | 33 |
| Packaging | Tape & Reel (TR) | Package / Case | 16-UFDFN Exposed Pad |
| Other Names | ECLAMP2458P.TTR | Operating Temperature | -40°C ~ 85°C |
| Number of Channels | 8 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height | 0.026" (0.65mm) |
| Filter Order | 5th | ESD Protection | Yes |
| Detailed Description | LC (Pi) EMI Filter 5th Order Low Pass 8 Channel L = 28nH, C = 12pF 16-UFDFN Exposed Pad | Center / Cutoff Frequency | 155MHz (Cutoff) |
| Attenuation Value | 40dB @ 800MHz ~ 2.7GHz | Applications | Data Lines for Mobile Devices |
