ECLAMP2342N.TCT

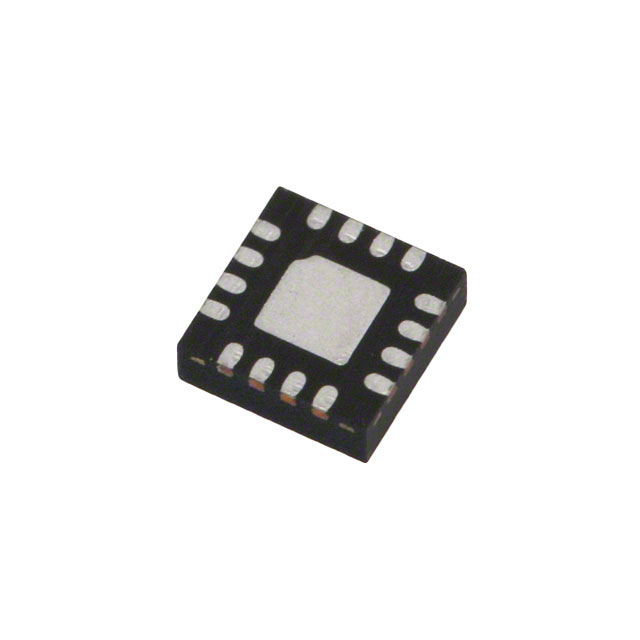

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ECLAMP2342N.TCT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ECLAMP2342N.TCT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ECLAMP2342N.TCT |
|---|---|
| Manufacturer | Semtech |
| Description | FILTER RC(PI) 100 OHM/12PF SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | |||
|---|---|---|---|---|---|
| $0.202 | $0.192 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ECLAMP2342N.TCT | Manufacturer | Semtech |
|---|---|---|---|
| Description | FILTER RC(PI) 100 OHM/12PF SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 111073 pcs | Data sheet | EClamp2342N |
| Category | Filters | Voltage - Rated | - |
| Values | R = 100 Ohms, C = 12pF (Total) | Type | Low Pass |
| Technology | RC (Pi) | Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Series | EClamp™ | Resistance - Channel (Ohms) | 100 |
| Packaging | Tape & Reel (TR) | Package / Case | 16-QFN |
| Other Names | ECLAMP2342NTCT ECLAMP2342NTR |
Operating Temperature | -40°C ~ 85°C |
| Number of Channels | 8 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height | 0.039" (1.00mm) |
| Filter Order | 2nd | ESD Protection | Yes |
| Detailed Description | RC (Pi) EMI Filter 2nd Order Low Pass 8 Channel R = 100 Ohms, C = 12pF (Total) 16-QFN | Center / Cutoff Frequency | - |
| Attenuation Value | 30dB @ 1GHz ~ 2.5GHz | Applications | Data Lines for Mobile Devices |
