PFRA.500

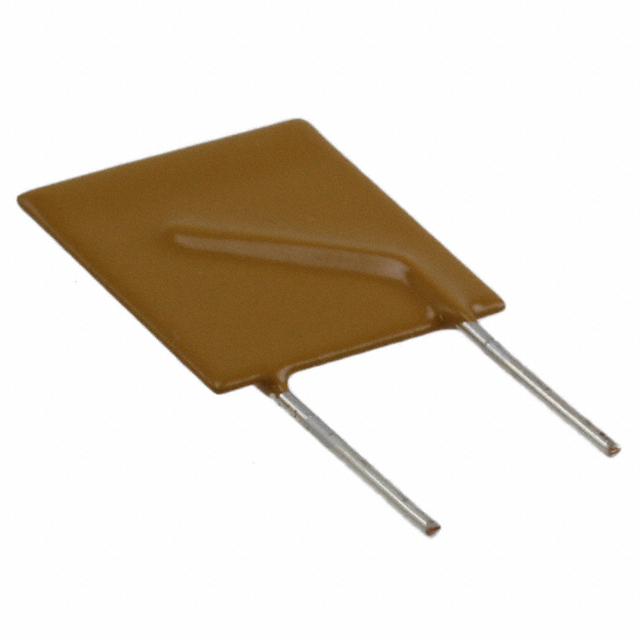

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PFRA.500 with confidence from Components-World.HK, 1 Year Warranty
Dowload PFRA.500 Details in PDFSee Product Specifications for product details.
Buy PFRA.500 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PFRA.500 |
|---|---|
| Manufacturer | Schurter |
| Description | PTC RESET FUSE 30V 5A RADIAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 50 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.259 | $0.212 | $0.199 | $0.158 | $0.155 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | PFRA.500 | Manufacturer | Schurter |
|---|---|---|---|
| Description | PTC RESET FUSE 30V 5A RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 131645 pcs | Data sheet | PRFA Series |
| Category | Circuit Protection | Voltage - Max | 30V |
| Type | Polymeric | Time to Trip | 14.5s |
| Thickness (Max) | - | Size / Dimension | 0.685" L x 0.118" W (17.40mm x 3.00mm) |
| Series | PFRA | Resistance - Post Trip (R1) (Max) | 50 mOhms |
| Resistance - Initial (Ri) (Min) | 10 mOhms | Ratings | - |
| Packaging | Bulk | Package / Case | Radial, Disc |
| Other Names | 486-2299 PFRA.500-ND PFRA500 |
Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Spacing | 0.402" (10.20mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.980" (24.90mm) |
| Detailed Description | Polymeric PTC Resettable Fuse 30V 5A Ih Through Hole Radial, Disc | Current - Trip (It) | 10A |
| Current - Max | 40A | Current - Hold (Ih) (Max) | 5A |
| Approvals | cURus, TUV |
